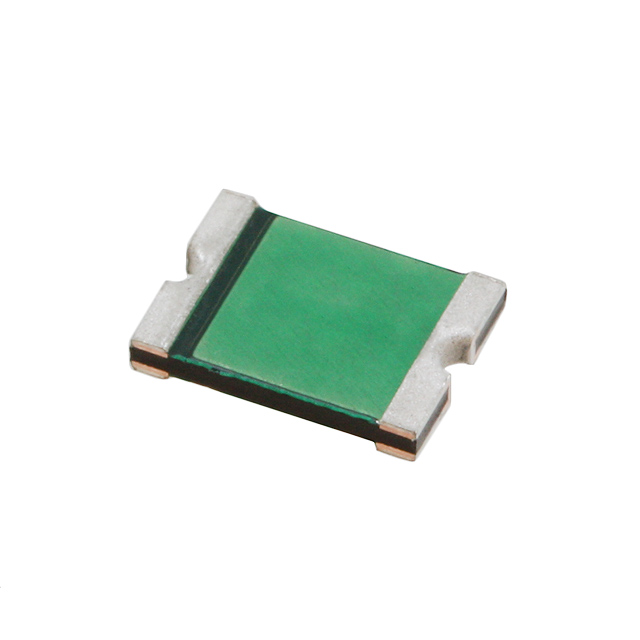

0ZTH0020FF2E
PTC RESET FUSE 30V 200MA 1210
Manufacturer: Bel Fuse Inc.IC code: 5923-0ZTH0020FF2ETR-ND - Tape & Reel (TR) || 5923-0ZTH0020FF2ECT-ND - Cut Tape (CT) || 5923-0ZTH0020FF2EDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Polymeric PTC Resettable Fuse 30V 200 mA Ih Surface Mount 1210 (3225 Metric), Concave
Specifications
- Type
- Polymeric
- Grade
- Automotive
- Series
- 0ZTH
- Ratings
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Lead Spacing
- -
- Manufacturer
- Bel Fuse Inc.
- Time to Trip
- 100 ms
- Current - Max
- 10 A
- Mounting Type
- Surface Mount
- Qualification
- AEC-Q200
- Voltage - Max
- 30V
Approval AgencycURus, TUV, UL Thickness (Max)0.047" (1.20mm) Size / Dimension0.127" L x 0.102" W (3.22mm x 2.58mm) Current - Trip (It)500 mA Operating Temperature-40°C ~ 125°C Current - Hold (Ih) (Max)200 mA Resistance - Initial (Ri) (Min)800 mOhms Resistance - Post Trip (R1) (Max)5 Ohms Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥6.20000 |
| Cut Tape (CT) & Digi-Reel® | 5 | ¥5.11000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥4.71400 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥3.91180 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥3.60900 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥3.24448 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥2.99242 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥2.75912 |
| Tape & Reel (TR) | 3,000 | ¥2.42371 |
| Tape & Reel (TR) | 6,000 | ¥2.23177 |
| Tape & Reel (TR) | 9,000 | ¥2.12597 |
| Tape & Reel (TR) | 15,000 | ¥2.06750 |
