1-1871673-2

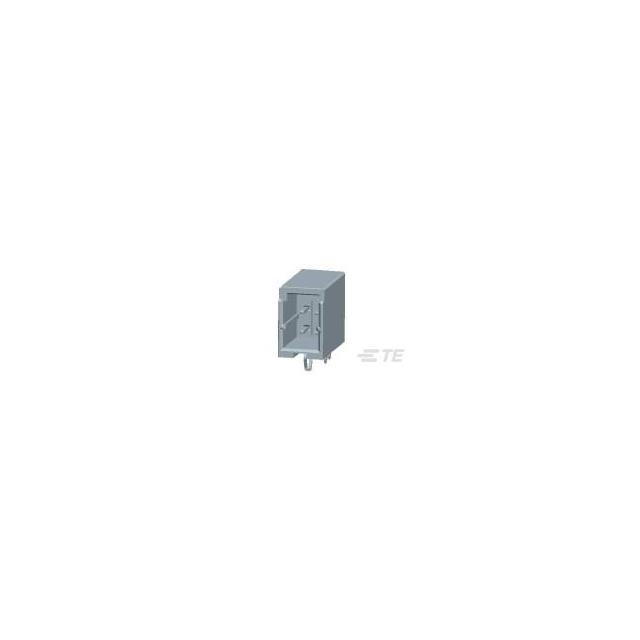

DYNAMIC 1200D HDR ASSY H 4PX BLA
Manufacturer: TE ConnectivityIC code: 2266-1-1871673-2-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Through Hole, Right Angle 4 position 0.098" (2.50mm)
Specifications
- Mfr
- TE Connectivity
- Style
- Board to Board or Cable
- Series
- -
- Features
- Board Lock
- Packaging
- Box
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- General Purpose, Industrial
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Header
- Fastening Type
- Detent Lock
- Number of Rows
- 2
- Pitch - Mating
- 0.098" (2.50mm)
- Voltage Rating
- 250VAC/DC
- Contact Material
- Copper Alloy
- Insulation Color
- Black
- Insulation Height
- 0.465" (11.80mm)
- Ingress Protection
- -
- Base Product Number
- 1871673
- Insulation Material
- Thermoplastic, Polyester, Glass Filled
- Number of Positions
- 4
- Row Spacing - Mating
- 0.130" (3.30mm)
- Contact Finish - Post
- Tin
- Contact Length - Post
- 0.122" (3.10mm)
- Current Rating (Amps)
- Varies by Wire Gauge
- Operating Temperature
- -55°C ~ 105°C
- Mated Stacking Heights
- -
- Overall Contact Length
- -
- Contact Finish - Mating
- Tin
- Contact Length - Mating
- -
- Number of Positions Loaded
- All
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Post
- 31.5µin (0.80µm)
- Contact Finish Thickness - Mating
- 31.5µin (0.80µm)
