140-502-417-060

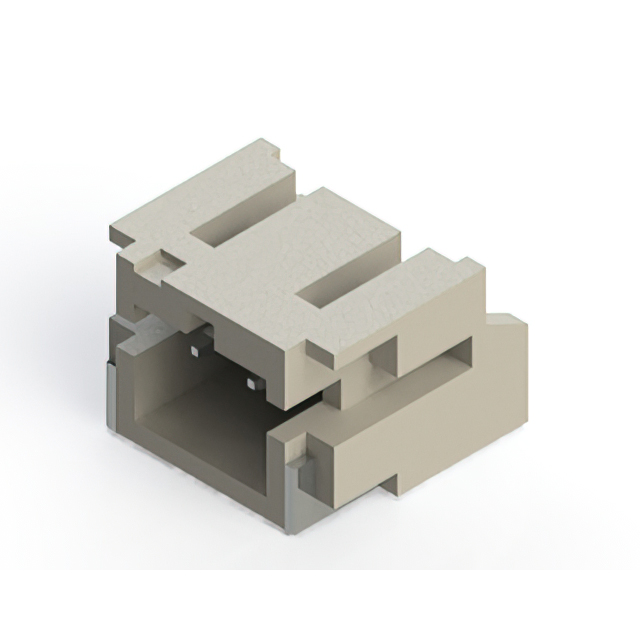

2.0MM PITCH CONNECTOR WITH 2 SUR
Manufacturer: EDAC Inc.IC code: 151-140-502-417-060TR-ND - Tape & Reel (TR) || 151-140-502-417-060CT-ND - Cut Tape (CT) || 151-140-502-417-060DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount, Right Angle 2 position 0.079" (2.00mm)
Specifications
- Mfr
- EDAC Inc.
- Style
- Board to Cable/Wire
- Series
- 140
- Features
- Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Header
Fastening TypeDetent Lock Pitch - Mating0.079" (2.00mm) Insulation Height0.217" (5.51mm) Base Product Number140-502 Insulation MaterialPolyamide (PA9T), Nylon 9T Operating Temperature-25°C ~ 85°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥3.14000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥2.64600 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥2.48440 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥2.36520 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥2.25110 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥2.10984 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥2.00912 |
| Tape & Reel (TR) | 1,000 | ¥1.91310 |
| Tape & Reel (TR) | 2,000 | ¥1.82172 |
| Tape & Reel (TR) | 3,000 | ¥1.77033 |
| Tape & Reel (TR) | 5,000 | ¥1.70764 |
| Tape & Reel (TR) | 7,000 | ¥1.66757 |
| Tape & Reel (TR) | 10,000 | ¥1.62615 |
| Tape & Reel (TR) | 25,000 | ¥1.52439 |
| Tape & Reel (TR) | 50,000 | ¥1.45171 |
