15130062601000

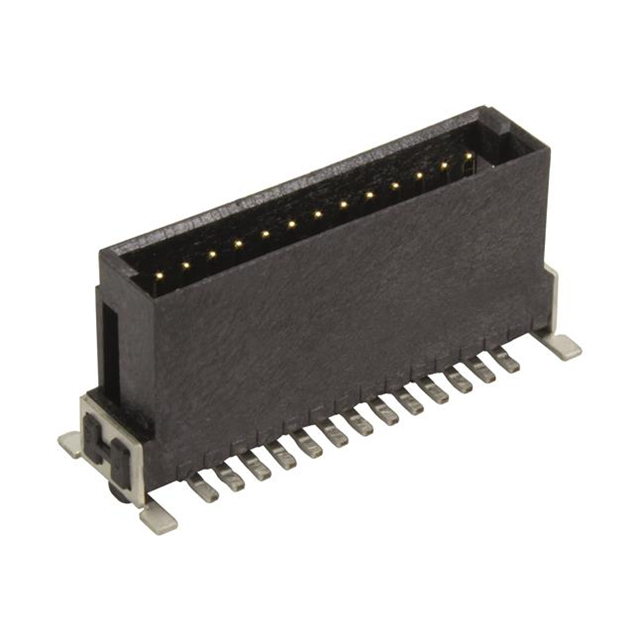

HAR-FLEX STR M 4.85MM 6P PL1
Manufacturer: HARTINGIC code: 1195-15130062601000TR-ND - Tape & Reel (TR) || 1195-15130062601000CT-ND - Cut Tape (CT) Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 6 position 0.050" (1.27mm)
Specifications
- Mfr
- HARTING
- Style
- Board to Board
- Series
- har-flex®
- Features
- Board Guide, Pick and Place, Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT)
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Header
Pitch - Mating0.050" (1.27mm) Contact MaterialCopper Alloy Insulation Height0.383" (9.73mm) Insulation MaterialLiquid Crystal Polymer (LCP) Row Spacing - Mating0.050" (1.27mm) Operating Temperature-55°C ~ 125°C Mated Stacking Heights11.1mm, 12.6mm, 13.9mm, 15.4mm, 18.5mm, 20mm Contact Finish - MatingGold Contact Length - Mating0.157" (4.00mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) | 1 | ¥33.82000 |
| Cut Tape (CT) | 10 | ¥28.74600 |
| Cut Tape (CT) | 100 | ¥24.43290 |
| Tape & Reel (TR) | 250 | ¥22.90260 |
| Tape & Reel (TR) | 500 | ¥21.80962 |
| Tape & Reel (TR) | 750 | ¥21.19488 |
| Tape & Reel (TR) | 1,250 | ¥20.44520 |
| Tape & Reel (TR) | 1,750 | ¥19.96593 |
| Tape & Reel (TR) | 2,500 | ¥19.47030 |
