Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

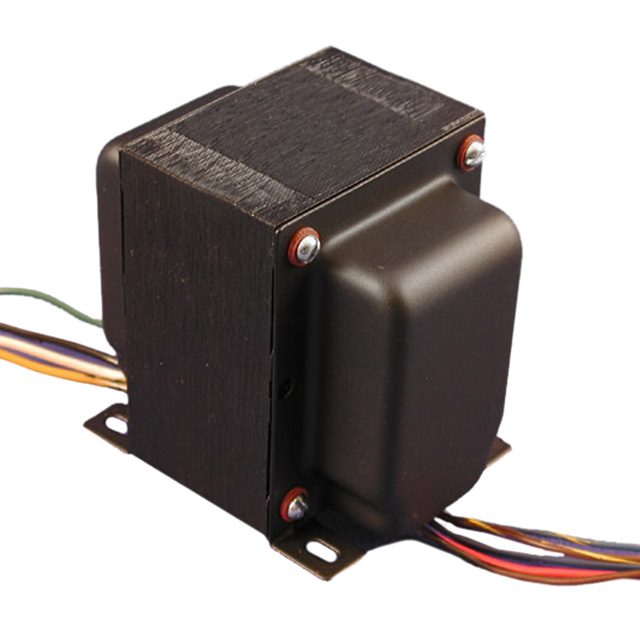

1.9kCT Impedance Primary Ohms 4, 8, 16 Impedance Secondary Ohms Audio Transformer 30Hz ~ 30kHz Chassis Mount
Specifications
- Series
- A
- Weight
- 14 lbs (6.4 kg)
- Packaging
- Box
- Part Status
- Active
- Power Level
- 120W
- Return Loss
- -
- Manufacturer
- Hammond Manufacturing
- Mounting Type
- Chassis Mount
- Insertion Loss
- -
- Approval Agency
- -
- Frequency Range
- 30Hz ~ 30kHz
- Size / Dimension
- 4.500" L x 3.750" W (114.30mm x 95.25mm)
- Transformer Type
Termination StyleWire Leads Voltage - Isolation2000V @ 1 Second Height - Seated (Max)4.560" (115.82mm) Impedance - Primary (Ohms)1.9kCT Impedance - Secondary (Ohms)4, 8, 16 DC Resistance (DCR) - Primary22.07Ohm, 24.85Ohm DC Resistance (DCR) - Secondary251mOhm, 334mOhm, 359mOhm Turns Ratio - Primary:Secondary- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥2,129.00000 |
| Box | 10 | ¥1,911.10800 |
| Box | 25 | ¥1,843.35720 |
