Description

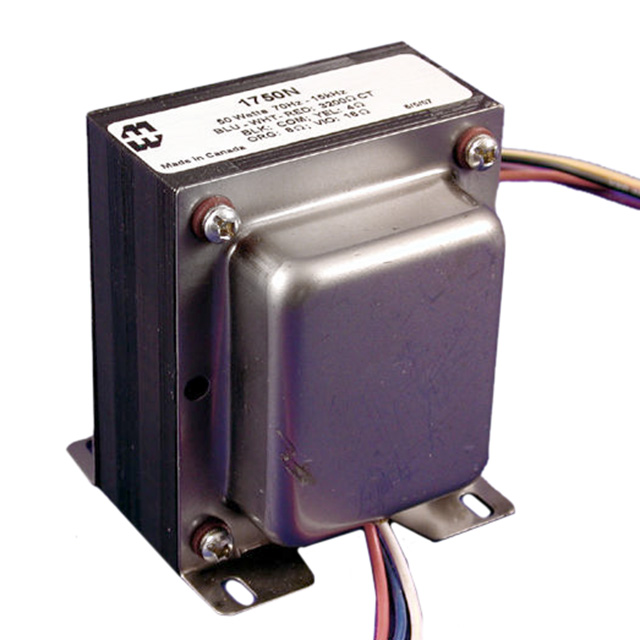

3.2kCT Impedance Primary Ohms 4, 8, 16 Impedance Secondary Ohms 14.30:1 Audio Transformer 70Hz ~ 15kHz Chassis Mount
Specifications
- Series
- 1750
- Weight
- 0.625 lb (283.5 g)
- Packaging
- Box
- Part Status
- Active
- Power Level
- 50W
- Return Loss
- -
- Manufacturer
- Hammond Manufacturing
- Mounting Type
- Chassis Mount
- Insertion Loss
- -
- Approval Agency
- -
- Frequency Range
- 70Hz ~ 15kHz
- Size / Dimension
- 3.125" L x 3.350" W (79.38mm x 85.09mm)
- Transformer Type
Termination StyleWire Leads Height - Seated (Max)3.800" (96.52mm) Impedance - Primary (Ohms)3.2kCT Impedance - Secondary (Ohms)4, 8, 16 DC Resistance (DCR) - Primary41.74Ohm, 3.14Ohm DC Resistance (DCR) - Secondary170mOhm, 240mOhm, 360mOhm Turns Ratio - Primary:Secondary14.30:1 Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥1,121.89000 |
| Box | 10 | ¥1,007.67000 |
| Box | 25 | ¥965.27600 |
| Box | 50 | ¥934.32280 |
