Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

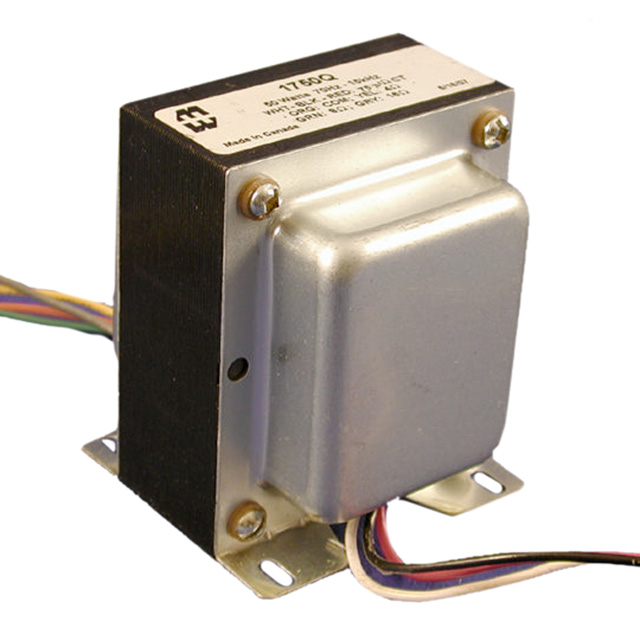

7.371kCT Impedance Primary Ohms 4, 8, 16 Impedance Secondary Ohms 21.46:1 Audio Transformer 50Hz ~ 12kHz Chassis Mount
Specifications
- Series
- 1750
- Weight
- 0.625 lb (283.5 g)
- Packaging
- Box
- Part Status
- Active
- Power Level
- 50W
- Return Loss
- -
- Manufacturer
- Hammond Manufacturing
- Mounting Type
- Chassis Mount
- Insertion Loss
- -
- Approval Agency
- -
- Frequency Range
- 50Hz ~ 12kHz
- Size / Dimension
- 3.125" L x 3.280" W (79.38mm x 83.31mm)
- Transformer Type
Termination StyleWire Leads Height - Seated (Max)3.813" (96.85mm) Impedance - Primary (Ohms)7.371kCT Impedance - Secondary (Ohms)4, 8, 16 DC Resistance (DCR) - Primary81.61Ohm, 78.63Ohm DC Resistance (DCR) - Secondary120mOhm, 190mOhm, 270mOhm Turns Ratio - Primary:Secondary21.46:1 Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥1,266.74000 |
| Box | 10 | ¥1,137.64800 |
| Box | 25 | ¥1,089.74080 |
| Box | 50 | ¥1,054.77620 |
