Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

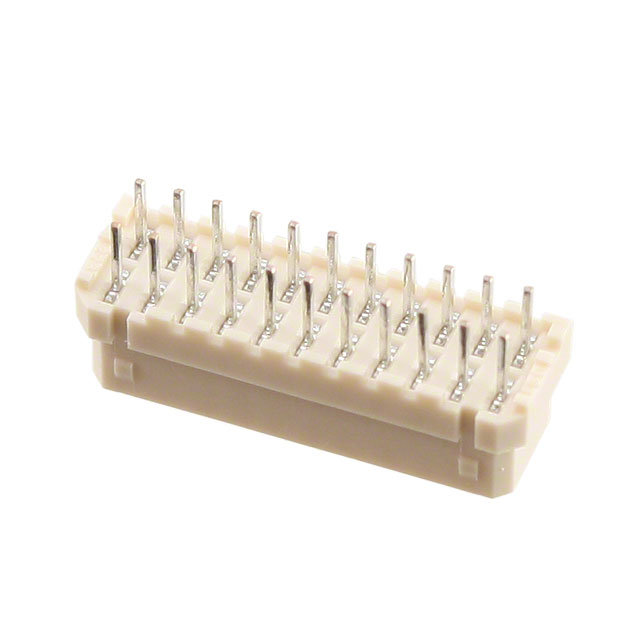

22 Position Receptacle Connector 0.049" (1.25mm) Through Hole Tin
Specifications
- Mfr
- JST Sales America Inc.
- Style
- Board to Board
- Series
- JED
- Features
- -
- Packaging
- Bulk
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Female Socket
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Receptacle
- Fastening Type
- Friction Lock
Pitch - Mating0.049" (1.25mm) Contact MaterialPhosphor Bronze Insulation Height0.173" (4.40mm) Base Product Number22R-JED Insulation MaterialPolyamide (PA66), Nylon 6/6, Glass Filled Row Spacing - Mating0.079" (2.00mm) Contact Length - Post0.079" (2.00mm) Operating Temperature-25°C ~ 85°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 1 | ¥8.60000 |
| Bulk | 10 | ¥7.31900 |
| Bulk | 100 | ¥6.22150 |
| Bulk | 500 | ¥5.55296 |
| Bulk | 1,000 | ¥5.28783 |
| Bulk | 5,000 | ¥4.88085 |
