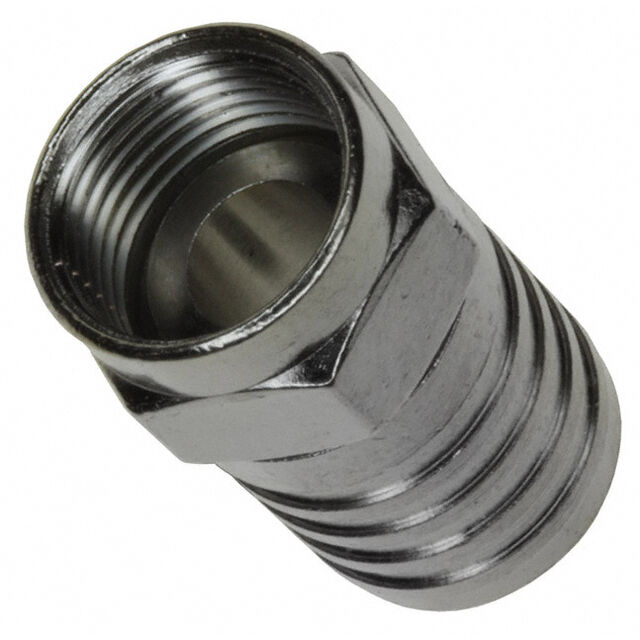

25-7034
CONN F PLUG STR 75 OHM
Manufacturer: Cinch Connectivity Solutions AIM-CambridgeIC code: 116-25-7034-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
F Type Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line)
Specifications
- Mfr
- Cinch Connectivity Solutions AIM-Cambridge
- Series
- -
- Features
- -
- Includes
- -
- Impedance
- 75 Ohms
- Packaging
- Bulk
- Body Finish
- Nickel
- Cable Group
- RG-6 Quad
- Part Status
- Active
- Body Material
- Brass
- Housing Color
- Silver
- Mating Cycles
- 100
- Mounting Type
- Free Hanging (In-Line)
- Connector Type
- Plug, Male Pin
- Fastening Type
- Threaded
- Insertion Loss
- -
- Voltage Rating
- 500 V
- Connector Style
- F Type
- Frequency - Max
- 750 MHz
- Number of Ports
- 1
- Mounting Feature
- -
- Ingress Protection
- -
- Shield Termination
- Crimp
- Base Product Number
- -
- Contact Termination
- -
- Dielectric Material
- -
- Operating Temperature
- -55°C ~ 85°C
- Center Contact Plating
- -
- Center Contact Material
- -
Pricing tiers
| Packaging | Qty | Unit price |
|---|---|---|
| Bulk | 1 | ¥5.71000 |
| Bulk | 10 | ¥4.81300 |
| Bulk | 25 | ¥4.51560 |
| Bulk | 50 | ¥4.29880 |
| Bulk | 100 | ¥4.09280 |
| Bulk | 300 | ¥3.78710 |
| Bulk | 500 | ¥3.65286 |
| Bulk | 1,000 | ¥3.47844 |
| Bulk | 2,500 | ¥3.26062 |
