Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

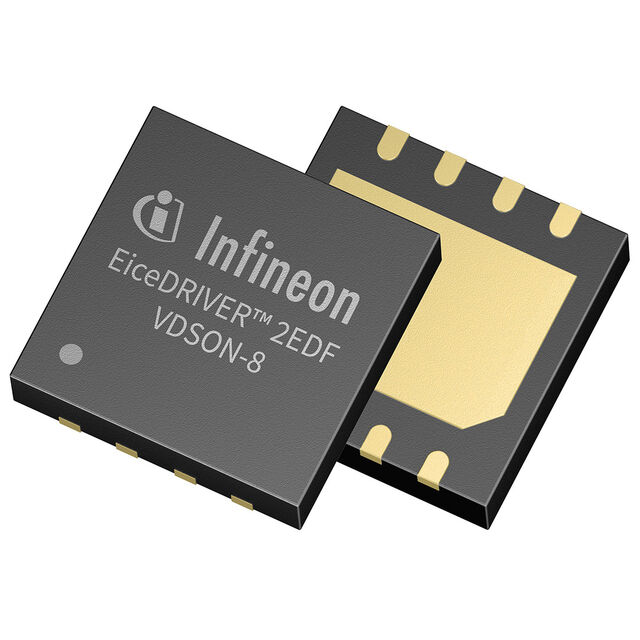

5A, 9A Gate Driver Magnetic Coupling 1 Channel PG-VDSON-8-5
Specifications
- Mfr
- Infineon Technologies
- Grade
- -
- Series
- EiceDRIVER™
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Technology
- Magnetic Coupling
- Part Status
- Active
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 8-VDFN Exposed Pad
- Approval Agency
- -
- Number of Channels
- 1
- Voltage - Isolation
- -
- Current - Peak Output
Operating Temperature-40°C ~ 125°C Rise / Fall Time (Typ)7.5ns, 6ns Supplier Device PackagePG-VDSON-8-5 Voltage - Output Supply7.6V ~ 17V, 7.6V ~ 20V Current - Output High, Low5A, 5A Pulse Width Distortion (Max)5.5ns Voltage - Forward (Vf) (Typ)- Propagation Delay tpLH / tpHL (Max)46ns, 47ns Common Mode Transient Immunity (Min)100V/ns Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥15.91000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥11.73100 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥10.67480 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥9.51710 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥8.96448 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥8.63132 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥8.35709 |
| Cut Tape (CT) & Digi-Reel® | 2,500 | ¥8.06760 |
| Tape & Reel (TR) | 5,000 | ¥7.89316 |
| Tape & Reel (TR) | 10,000 | ¥7.74954 |
