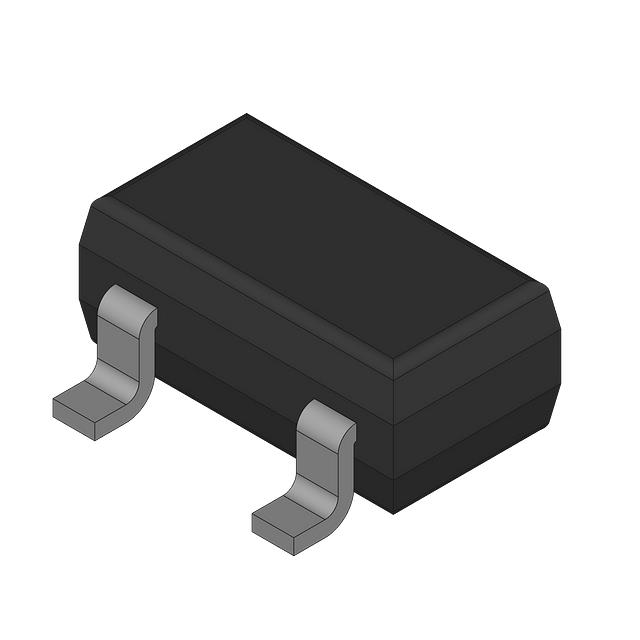

2SC5773JR-TL-E
RF TRANS NPN 6V 10.8GHZ 3-MPAK
Manufacturer: Renesas Electronics CorporationIC code: 2156-2SC5773JR-TL-E-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Transistor NPN 6V 80mA 10.8GHz 700mW Surface Mount 3-MPAK
Specifications
- Gain
- 11.9dB
- Grade
- -
- Series
- -
- Packaging
- Bulk
- Part Status
- Active
- Power - Max
- 700mW
- Manufacturer
- Renesas Electronics Corporation
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- TO-236-3, SC-59, SOT-23-3
- Transistor Type
- NPN
- Operating Temperature
- 150°C (TJ)
- Frequency - Transition
- 10.8GHz
- Supplier Device Package
- 3-MPAK
- Noise Figure (dB Typ @ f)
- 1.1dB @ 900MHz
- Current - Collector (Ic) (Max)
- 80mA
- DC Current Gain (hFE) (Min) @ Ic, Vce
- 80 @ 50mA, 5V
- Voltage - Collector Emitter Breakdown (Max)
