Description

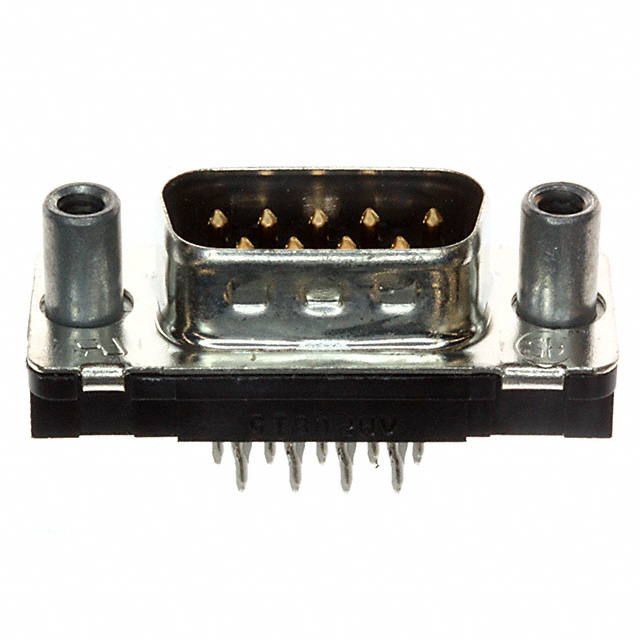

9 Position D-Sub Plug, Male Pins Connector
Specifications
- Mfr
- TE Connectivity AMP Connectors
- Color
- Black
- Series
- AMPLIMITE HD-20
- Features
- Grounding Indents
- Packaging
- Tray
- Wire Gauge
- -
- Part Status
- Obsolete
- Termination
- Press-Fit
- Contact Form
- -
- Contact Type
- Signal
- Mounting Type
- Through Hole
- Connector Type
- Plug, Male Pins
- Contact Finish
- Gold
- Flange Feature
Contact MaterialCopper Alloy Base Product Number5787176 Dielectric MaterialPolyamide (PA), Nylon Operating Temperature-55°C ~ 105°C Shell Material, FinishSteel, Tin Plated Contact Finish Thickness- Material Flammability RatingUL94 V-0 Shell Size, Connector Layout1 (DE, E) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tray | 1 | ¥111.07000 |
| Tray | 10 | ¥94.40200 |
| Tray | 25 | ¥88.48560 |
| Tray | 50 | ¥84.26120 |
| Tray | 130 | ¥78.76908 |
| Tray | 260 | ¥75.01200 |
| Tray | 520 | ¥71.43554 |
| Tray | 1,040 | ¥68.03053 |
