59011-0087N-001

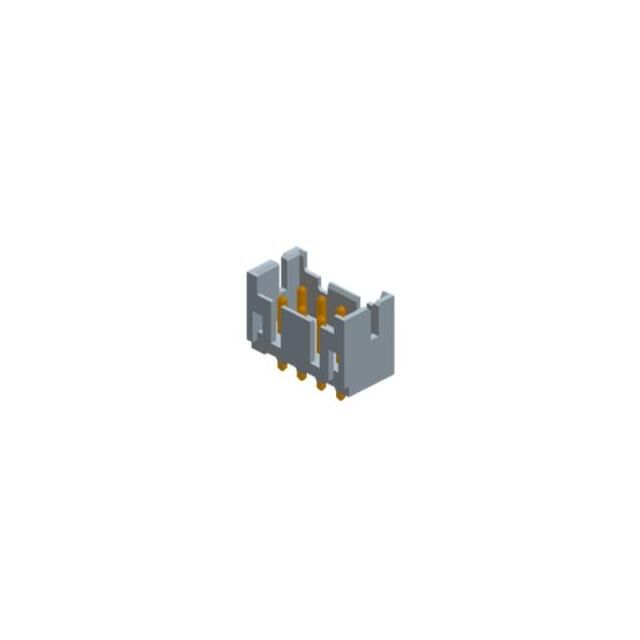

8P, 2.0MM PITCH WTB WAFER CONN.
Manufacturer: Aces ConnectorsIC code: 4294-59011-0087N-001TR-ND - Tape & Reel (TR) || 4294-59011-0087N-001CT-ND - Cut Tape (CT) || 4294-59011-0087N-001DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Through Hole 8 position 0.079" (2.00mm)
Specifications
- Mfr
- Aces Connectors
- Style
- Board to Cable/Wire
- Series
- 59011
- Features
- Board Guide, Pick and Place
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- General Purpose
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Header
Pitch - Mating0.079" (2.00mm) Contact MaterialCopper Alloy Insulation Height0.256" (6.50mm) Insulation MaterialThermoplastic Row Spacing - Mating0.079" (2.00mm) Contact Length - Post0.059" (1.50mm) Current Rating (Amps)1.6A Operating Temperature-25°C ~ 85°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating120.0µin (3.05µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥5.87000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥4.97800 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥4.22980 |
| Tape & Reel (TR) | 600 | ¥3.72698 |
| Tape & Reel (TR) | 1,200 | ¥3.54905 |
| Tape & Reel (TR) | 1,800 | ¥3.44890 |
| Tape & Reel (TR) | 3,000 | ¥3.32683 |
| Tape & Reel (TR) | 4,200 | ¥3.24878 |
| Tape & Reel (TR) | 6,000 | ¥3.16809 |
| Tape & Reel (TR) | 15,000 | ¥2.96988 |
