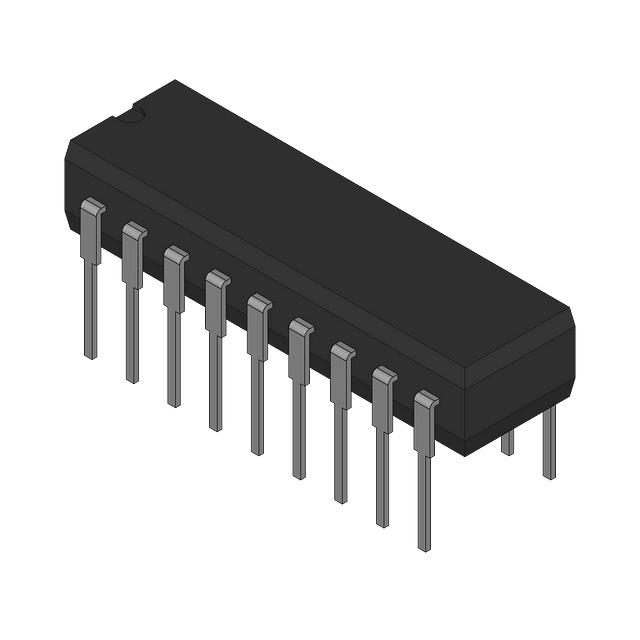

5962-8761801VA
VIDEO MULTIPLEXER, 4 CHANNEL
Manufacturer: Harris CorporationIC code: 2156-5962-8761801VA-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Video Switch IC 1 Channel 18-CERDIP
Specifications
- Series
- -
- Features
- Buffered
- Packaging
- Bulk
- Part Status
- Active
- Applications
- Video
- Manufacturer
- Harris Corporation
- Mounting Type
- Through Hole
- -3db Bandwidth
- 8MHz
- Package / Case
- 18-DIP (0.300", 7.62mm)
- Switch Circuit
- SP4T
- Number of Channels
- 1
- Operating Temperature
- -55°C ~ 125°C
- Supplier Device Package
- 18-CERDIP
- On-State Resistance (Max)
- 700Ohm (Typ)
- Voltage - Supply, Dual (V±)
- ±15V
- Voltage - Supply, Single (V+)
- 33V
- Multiplexer/Demultiplexer Circuit
- 4:1
