Description

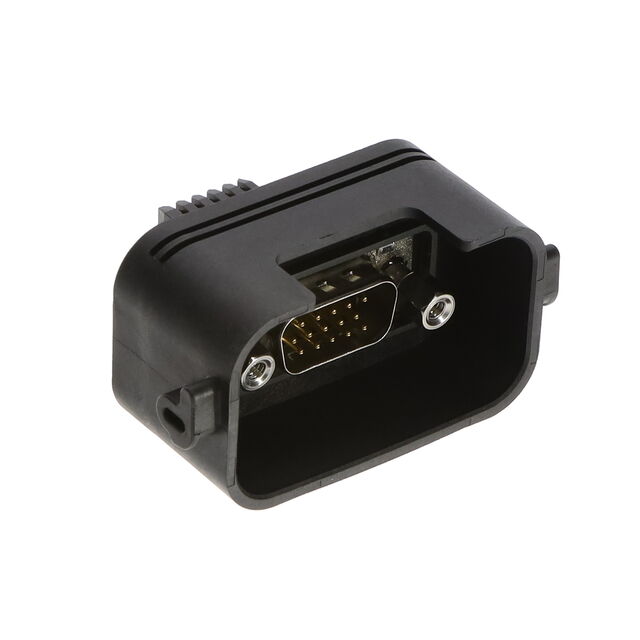

15 Position D-Sub, High Density Plug, Male Pins Connector
Specifications
- Mfr
- 3M
- Color
- Black
- Series
- 8PC15
- Features
- Grounding Indents
- Packaging
- Box
- Wire Gauge
- -
- Part Status
- Active
- Termination
- IDC, Discrete Wire
- Contact Form
- Machined
- Contact Type
- Signal
- Mounting Type
- Free Hanging (In-Line)
- Connector Type
- Plug, Male Pins
- Contact Finish
- Gold
- Flange Feature
Connector StyleD-Sub, High Density Contact MaterialCopper Alloy Ingress ProtectionIP67 - Dust Tight, Waterproof Dielectric MaterialPolybutylene Terephthalate (PBT), Glass Filled Operating Temperature-40°C ~ 85°C Contact Finish Thickness15.0µin (0.38µm) Material Flammability RatingUL94 V-0 Shell Size, Connector Layout1 (DE, E) High Density Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥100.40000 |
| Box | 10 | ¥85.31300 |
| Box | 25 | ¥79.96760 |
| Box | 50 | ¥76.15000 |
| Box | 240 | ¥68.17504 |
| Box | 480 | ¥64.92390 |
| Box | 720 | ¥63.09486 |
| Box | 1,200 | ¥60.86444 |
