A29052-009

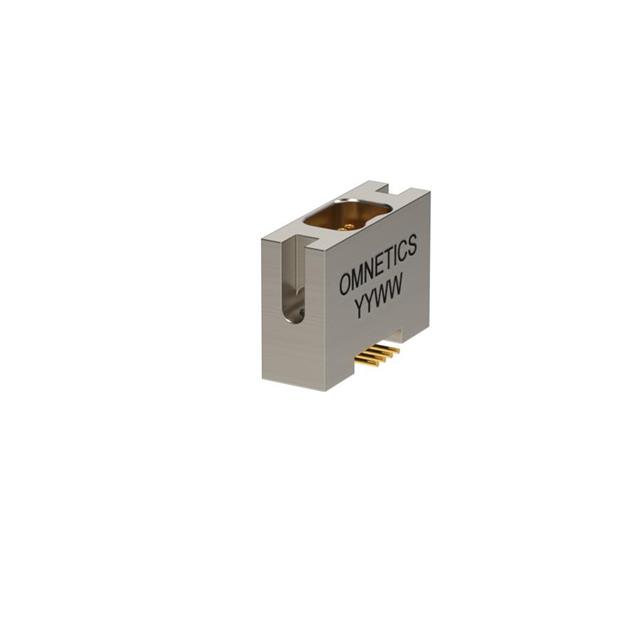

CONN D-TYPE RCPT 9POS SMD SOLDER
Manufacturer: OmneticsIC code: 2262-A29052-009TR-ND - Tape & Reel (TR) || 2262-A29052-009CT-ND - Cut Tape (CT) || 2262-A29052-009DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
9 Position D-Type, Nano-D Receptacle, Female Sockets Connector
Specifications
- Mfr
- Omnetics
- Color
- -
- Series
- Nano-D / Bi-Lobe®
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Wire Gauge
- -
- Part Status
- Active
- Termination
- Solder
- Contact Form
- -
- Contact Type
- Signal
- Mounting Type
- Surface Mount
- Connector Type
- Receptacle, Female Sockets
- Contact Finish
- Gold
Connector StyleD-Type, Nano-D Contact MaterialCopper Alloy Dielectric MaterialLiquid Crystal Polymer (LCP) Shell Material, FinishAluminum, Nickel Plated Contact Finish Thickness50.0µin (1.27µm) Material Flammability Rating- Shell Size, Connector Layout0.025 Pitch x 0.040 Row to Row Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥1,881.26000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥1,796.49700 |
| Tape & Reel (TR) | 25 | ¥1,499.27280 |
| Tape & Reel (TR) | 50 | ¥1,467.72300 |
