AA1F1C-P05MJG0-0000

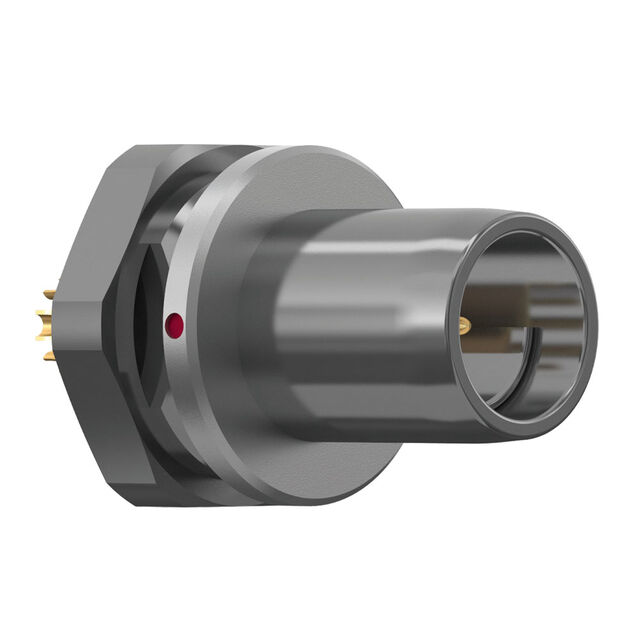

ODU MINI SNAP PLUG PANEL MOUNT,S
Manufacturer: ODUIC code: 1907-AA1F1C-P05MJG0-0000-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
5 Position Circular Connector Plug, Male Pins Solder Cup
Specifications
- Mfr
- ODU
- Color
- Silver
- Series
- ODU MINI-SNAP® F
- Features
- -
- Packaging
- Bulk
- Shielding
- Unshielded
- Orientation
- 1
- Part Status
- Active
- Termination
- Solder Cup
- Applications
- Industrial, Medical, Military, Testing Equipment & Measurement
- Shell Finish
- Chrome over Nickel
- Cable Opening
- -
- Mounting Type
- Panel Mount
- Connector Type
- Plug, Male Pins
- Fastening Type
- Push-Pull
- Shell Material
- Brass
- Voltage Rating
- 450V
- Insert Material
- Polyetheretherketone (PEEK)
- Shell Size, MIL
- -
- Contact Material
- Brass
- Mounting Feature
- Bulkhead - Rear Side Nut
- Primary Material
- Metal
- Ingress Protection
- IP50 - Dust Protected
- Base Product Number
- AA1F1C-P
- Number of Positions
- 5
- Shell Size - Insert
- 1
- Current Rating (Amps)
- 7.5A
- Operating Temperature
- -40°C ~ 120°C
- Contact Finish - Mating
- Gold
- Backshell Material, Plating
- -
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Mating
- -
Pricing tiers
| Packaging | Qty | Unit price |
|---|---|---|
| Bulk | 1 | ¥320.38000 |
