AAD1-9090SE28ZC

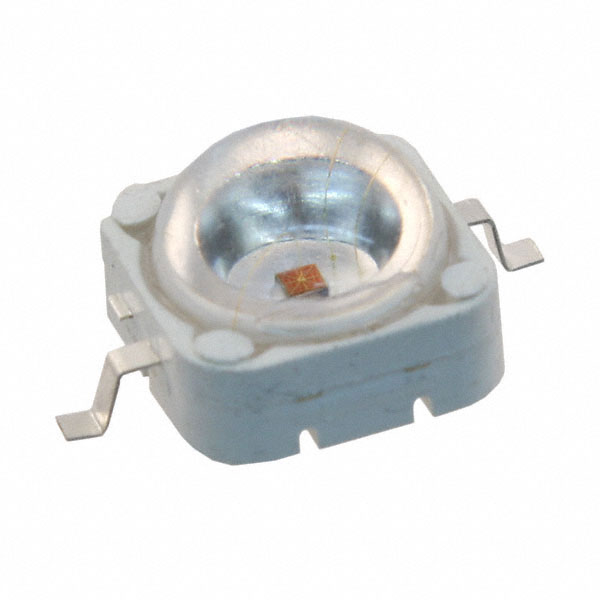

LED AAD1-9090 RED 625NM
Manufacturer: KingbrightIC code: 754-1315-2-ND - Tape & Reel (TR) || 754-1315-1-ND - Cut Tape (CT) || 754-1315-6-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
LED Lighting Color AAD1-9090 Red 625nm (Typ) 2-SMD, Gull Wing Exposed Pad
Specifications
- Mfr
- Kingbright
- Color
- Red
- Series
- AAD1-9090
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Wavelength
- 625nm (Typ)
- Part Status
- Active
- Current - Max
- 350mA
- Mounting Type
- Surface Mount
- Viewing Angle
- 100°
- Current - Test
- 350mA
- Package / Case
- 2-SMD, Gull Wing Exposed Pad
- Size / Dimension
- 0.354" L x 0.354" W (9.00mm x 9.00mm)
- Temperature - Test
- 25°C
- Base Product Number
- AAD1-9090
- Height - Seated (Max)
- 0.267" (6.78mm)
- Supplier Device Package
- -
- Lumens/Watt @ Current - Test
- 40 lm/W
- Voltage - Forward (Vf) (Typ)
