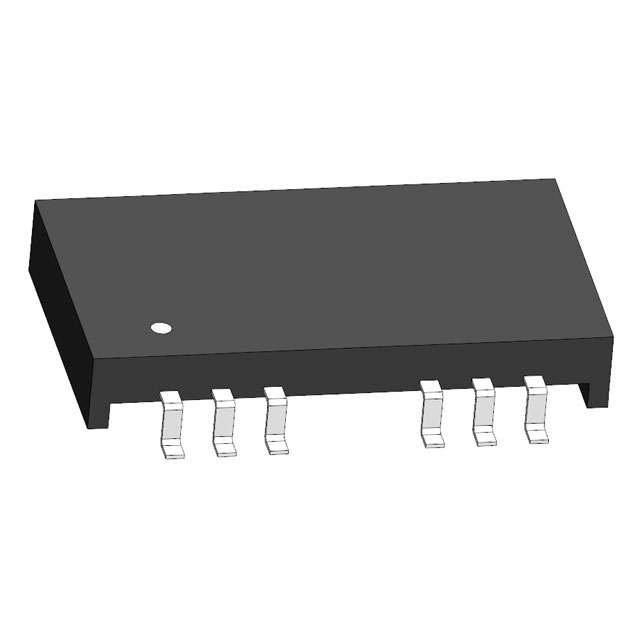

ALANL100X1-EF10ET
10/100BASE-TX LAN XFMR
Manufacturer: Abracon LLCIC code: 535-ALANL100X1-EF10ETTR-ND - Tape & Reel (TR) || 535-ALANL100X1-EF10ETCT-ND - Cut Tape (CT) || 535-ALANL100X1-EF10ETDKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Specifications
- Series
- ALANL100X1-E
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Inductance
- 350µH
- Part Status
- Active
- Manufacturer
- Abracon LLC
- Mounting Type
- Surface Mount
- ET (Volt-Time)
- -
- Size / Dimension
- 0.500" L x 0.280" W (12.70mm x 7.11mm)
- Transformer Type
- LAN 10/100 Base-T
- Height - Seated (Max)
- 0.085" (2.15mm)
- Operating Temperature
- 0°C ~ 70°C
- Turns Ratio - Primary:Secondary
- 1CT:1CT Transmitter, 1CT:1CT Receiver
