Description

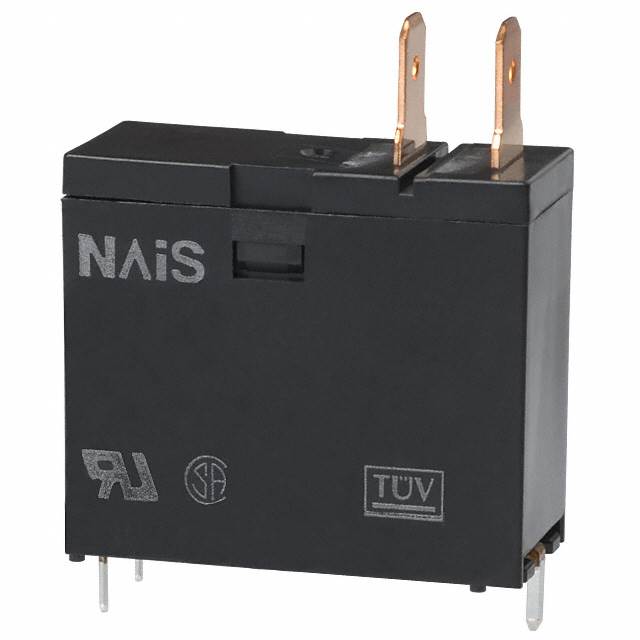

General Purpose Relay SPST-NO (1 Form A) 18VDC Coil Through Hole
Specifications
- Mfr
- Panasonic Electric Works
- Grade
- -
- Series
- ALE
- Features
- -
- Coil Type
- Non Latching
- Packaging
- Bulk
- Relay Type
- General Purpose
- Part Status
- Obsolete
- Seal Rating
- -
- Coil Current
- 22.2 mA
- Coil Voltage
- 18VDC
- Contact Form
- SPST-NO (1 Form A)
- Operate Time
- 20 ms
- Release Time
Mounting TypeThrough Hole Approval AgencyCSA, TUV, UR, VDE Contact MaterialSilver Tin Oxide (AgSnO) Switching Voltage277VAC - Max Termination StylePC Pin, Quick Connect - 0.187" (4.7mm) Base Product NumberALE13B Load - Max Switching4432VA Must Operate Voltage13.5 VDC Must Release Voltage0.9 VDC Operating Temperature-40°C ~ 85°C Contact Rating (Current)16 A Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 1 | ¥22.46000 |
| Bulk | 10 | ¥19.61300 |
| Bulk | 25 | ¥18.58720 |
