APT30S20SG

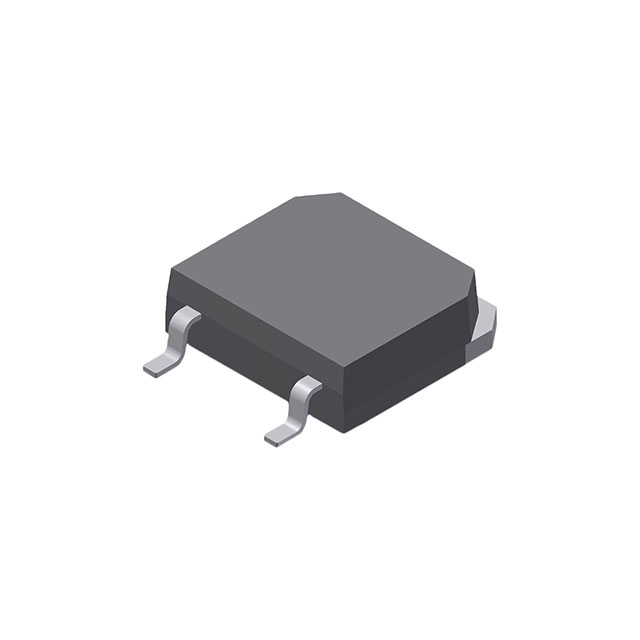

DIODE SCHOTTKY 200V 45A D3PAK
Manufacturer: Microsemi CorporationIC code: 150-APT30S20SG-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Diode 200 V 45A Surface Mount D3PAK
Specifications
- Mfr
- Microsemi Corporation
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- Series
- -
- Packaging
- Tube
- Technology
- Schottky
- Part Status
- Obsolete
- Mounting Type
- Surface Mount
- Package / Case
- TO-268-3, D3PAK (2 Leads + Tab), TO-268AA
- Capacitance @ Vr, F
- -
- Supplier Device Package
- D3PAK
- Reverse Recovery Time (trr)
- 55 ns
- Current - Reverse Leakage @ Vr
- 500 µA @ 200 V
- Voltage - DC Reverse (Vr) (Max)
- 200 V
- Current - Average Rectified (Io)
- 45A
- Operating Temperature - Junction
- -55°C ~ 150°C
- Voltage - Forward (Vf) (Max) @ If
- 850 mV @ 30 A
