Description

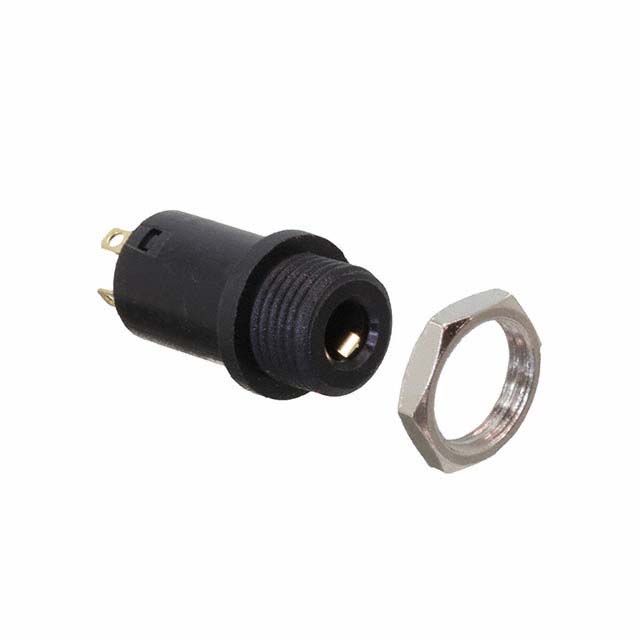

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder Eyelet(s)
Specifications
- Mfr
- Adam Tech
- Gender
- Female
- Series
- ASJ
- Features
- Thread Lock
- Includes
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Packaging
- Bag
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder Eyelet(s)
- Thread Size
- M8x0.75
- Signal Lines
- Stereo (4 Conductor, TRRS)
- Body Material
- -
Mounting TypePanel Mount, Through Hole Actual Diameter0.142" (3.60mm) Panel Hole Size0.433" (11.00mm) Contact MaterialPhosphor Bronze Housing MaterialPolyamide (PA66), Nylon 6/6 Internal Switch(s)Does Not Contain Switch Base Product NumberASJ-165 Mating Length/Depth0.551" (14.00mm) Current Rating (Amps)500 mA Operating Temperature-20°C ~ 70°C Contact Material - PlatingGold Number of Positions/Contacts3 Conductors, 4 Contacts Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bag | 1 | ¥8.10000 |
| Bag | 10 | ¥6.85600 |
| Bag | 25 | ¥6.42760 |
| Bag | 50 | ¥6.12140 |
| Bag | 100 | ¥5.82790 |
| Bag | 250 | ¥5.46284 |
| Bag | 500 | ¥5.20182 |
| Bag | 1,000 | ¥4.95339 |
| Bag | 2,500 | ¥4.64327 |
