ATRD-R-0003

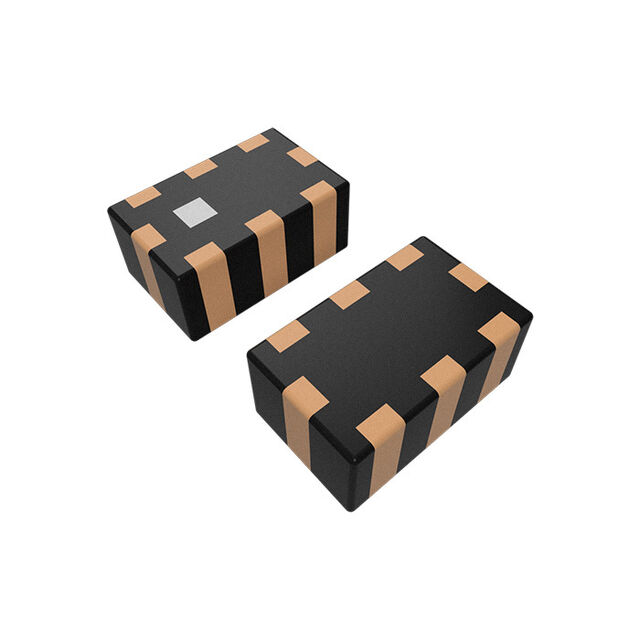

Multi-layer Chip Triplexer
Manufacturer: Abracon LLCIC code: 535-ATRD-R-0003TR-ND - Tape & Reel (TR) || 535-ATRD-R-0003CT-ND - Cut Tape (CT) || 535-ATRD-R-0003DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Triplexer 1.56GHz ~ 1.606GHz / 4.9GHz ~ 5.95GHz 0805 (2012 Metric)
Specifications
- Type
- Triplexer
- Grade
- -
- Series
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- Abracon LLC
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 0805 (2012 Metric)
- Frequency Bands (Low / High)
- 1.56GHz ~ 1.606GHz / 4.9GHz ~ 5.95GHz
- Return Loss (Low Band / High Band)
- -
- Low Band Attenuation (min / max dB)
- 13.00dB / -
