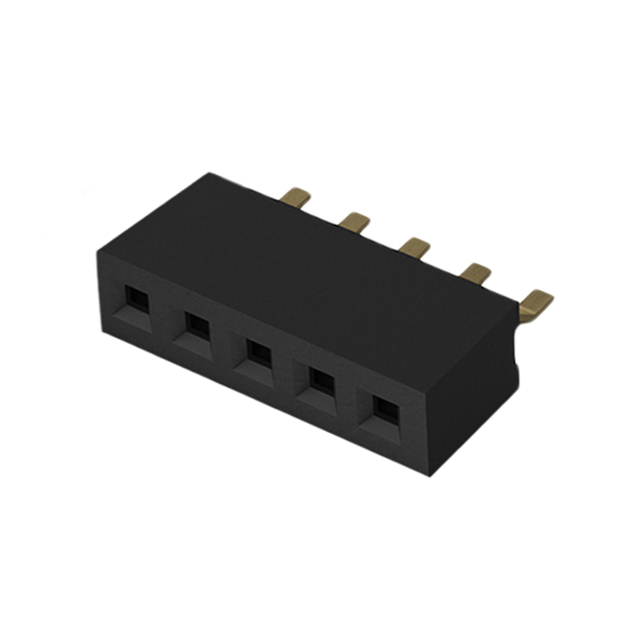

BC075-05-A-L-A
5POS 1.0MM PITCH SOCKET, SIL, SM
Manufacturer: GCTIC code: 2073-BC075-05-A-L-ATR-ND - Tape & Reel (TR) || 2073-BC075-05-A-L-ACT-ND - Cut Tape (CT) || 2073-BC075-05-A-L-ADKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
5 Position Receptacle Connector 0.039" (1.00mm) Surface Mount, Right Angle Gold
Specifications
- Mfr
- GCT
- Style
- Board to Board
- Series
- BC075
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Female Socket
- Contact Shape
- Square
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Receptacle
- Fastening Type
- Push-Pull
Pitch - Mating0.039" (1.00mm) Contact MaterialPhosphor Bronze Insulation Height0.059" (1.50mm) Insulation MaterialLiquid Crystal Polymer (LCP) Contact Finish - PostGold Current Rating (Amps)1A per Contact Operating Temperature-40°C ~ 105°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - PostFlash Contact Finish Thickness - MatingFlash Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥6.62000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥5.59100 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥4.74700 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥4.23656 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥4.03418 |
| Tape & Reel (TR) | 3,000 | ¥3.73329 |
| Tape & Reel (TR) | 6,000 | ¥3.55516 |
| Tape & Reel (TR) | 9,000 | ¥3.45494 |
| Tape & Reel (TR) | 15,000 | ¥3.33276 |
| Tape & Reel (TR) | 21,000 | ¥3.25464 |
