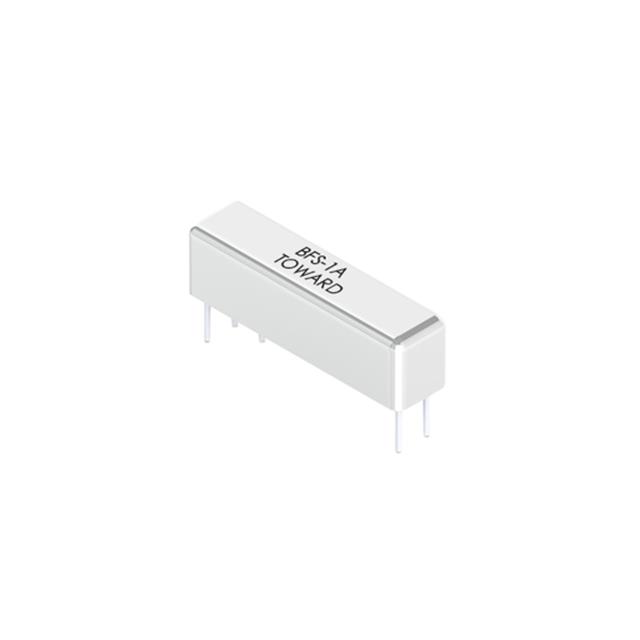

BFS-1A05C
250V/1A REED RELAY, 1 FORM A, 5V
Manufacturer: Toward Technologies, Inc.IC code: 3008-BFS-1A05C-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Reed Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Specifications
- Series
- BFS
- Features
- Coaxial Shield
- Coil Type
- Non Latching
- Packaging
- Tube
- Part Status
- Active
- Seal Rating
- Sealed - Hermetically
- Coil Current
- 13.5 mA
- Coil Voltage
- 5VDC
- Contact Form
- SPST-NO (1 Form A)
- Manufacturer
- Toward Technologies, Inc.
- Operate Time
- 0.5 ms
- Release Time
- 0.1 ms
- Mounting Type
- Through Hole
- Coil Resistance
- 370 Ohms
- Contact Material
- -
- Switching Voltage
- 200VDC - Max
- Termination Style
- PC Pin
- Must Operate Voltage
- 3.8 VDC
Pricing tiers
| Packaging | Qty | Unit price |
|---|---|---|
| Tube | 1 | ¥110.71000 |
| Tube | 10 | ¥98.61400 |
| Tube | 25 | ¥94.16840 |
| Tube | 50 | ¥90.93940 |
| Tube | 135 | ¥86.49763 |
| Tube | 270 | ¥83.52467 |
| Tube | 540 | ¥80.65246 |
| Tube | 1,080 | ¥77.87723 |
