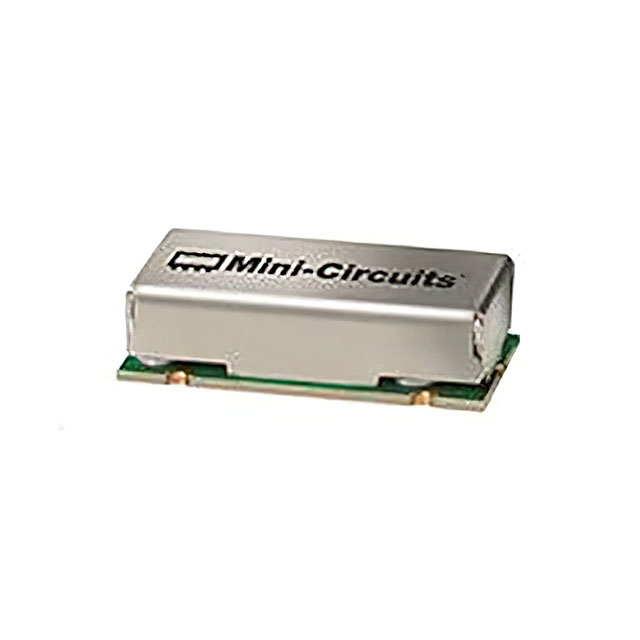

BPF-B63+
RF FILTER BAND PASS 63MHZ 6SMD
Manufacturer: Mini-CircuitsIC code: 3157-BPF-B63+TR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
63MHz Center Frequency Band Pass RF Filter (Radio Frequency) 4MHz Bandwidth 5dB 6-SMD, No Lead
Specifications
- Ripple
- -
- Series
- BPF
- Bandwidth
- 4MHz
- Frequency
- 63MHz Center
- Packaging
- Tape & Reel (TR)
- Filter Type
- Band Pass
- Part Status
- Active
- Height (Max)
- 0.220" (5.59mm)
- Manufacturer
- Mini-Circuits
- Mounting Type
- Surface Mount
- Insertion Loss
- 5dB
- Package / Case
- 6-SMD, No Lead
- Size / Dimension
- 0.826" L x 0.472" W (20.98mm x 11.99mm)
