BPF-C550+

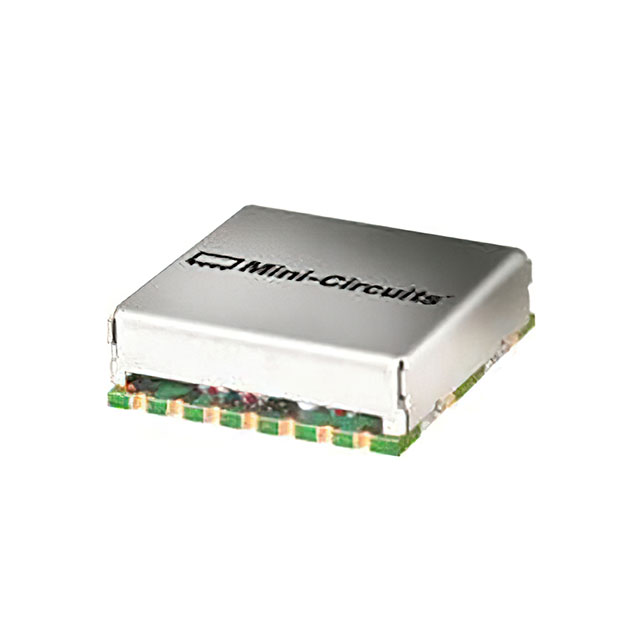

RF FILTER BAND PASS 550MHZ 14SMD
Manufacturer: Mini-CircuitsIC code: 3157-BPF-C550+TR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
550MHz Center Frequency Band Pass RF Filter (Radio Frequency) 900MHz Bandwidth 2.2dB 14-SMD Module
Specifications
- Ripple
- -
- Series
- BPF
- Bandwidth
- 900MHz
- Frequency
- 550MHz Center
- Packaging
- Tape & Reel (TR)
- Filter Type
- Band Pass
- Part Status
- Active
- Height (Max)
- 0.250" (6.35mm)
- Manufacturer
- Mini-Circuits
- Mounting Type
- Surface Mount
- Insertion Loss
- 2.2dB
- Package / Case
- 14-SMD Module
- Size / Dimension
- 0.870" L x 0.800" W (22.10mm x 20.32mm)
