BSB012NE2LX

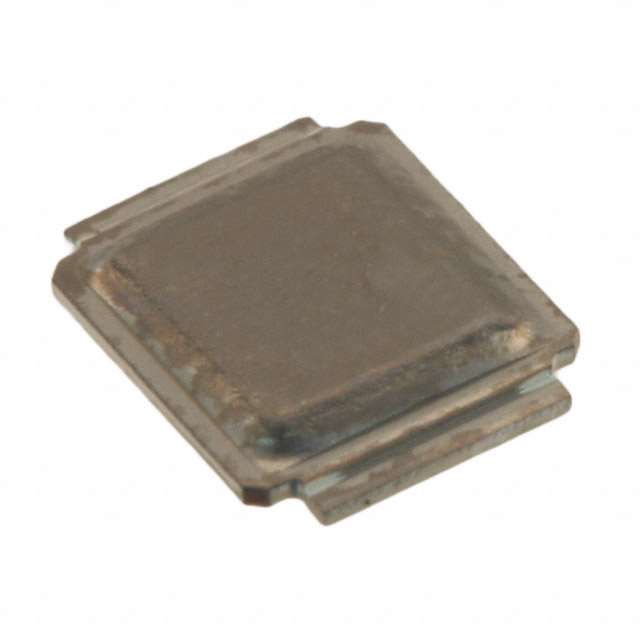

MOSFET N-CH 25V 37A/170A 2WDSON
Manufacturer: Infineon TechnologiesIC code: BSB012NE2LXTR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
N-Channel 25 V 37A (Ta), 170A (Tc) 2.8W (Ta), 57W (Tc) Surface Mount MG-WDSON-2, CanPAK M™
Specifications
- Mfr
- Infineon Technologies
- Grade
- -
- Series
- OptiMOS™
- FET Type
- N-Channel
- Packaging
- Tape & Reel (TR)
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Obsolete
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 3-WDSON
- Vgs(th) (Max) @ Id
- 2V @ 250µA
- Operating Temperature
- -40°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 1.2mOhm @ 30A, 10V
- Power Dissipation (Max)
- 2.8W (Ta), 57W (Tc)
- Supplier Device Package
- MG-WDSON-2, CanPAK M™
- Gate Charge (Qg) (Max) @ Vgs
