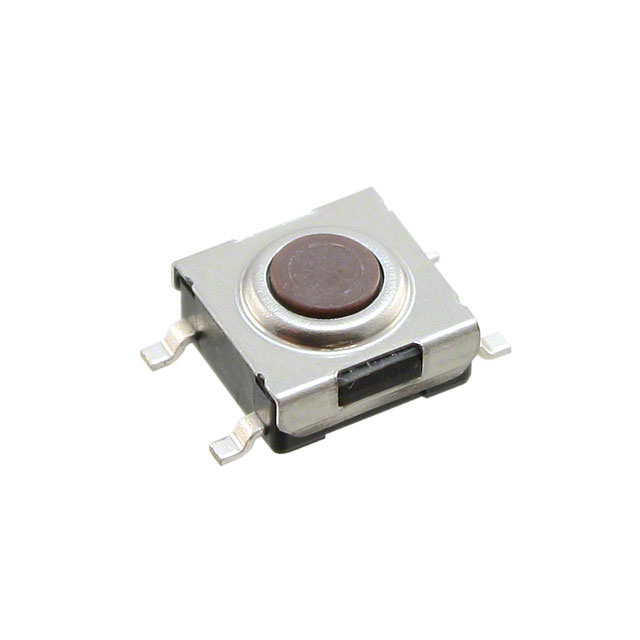

CB315FP-R
SWITCH TACTILE SPST-NO 0.05A 24V
Manufacturer: NKK SwitchesIC code: 360-2591-2-ND - Tape & Reel (TR) || 360-2591-1-ND - Cut Tape (CT) || 360-2591-6-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- NKK Switches
- Series
- CB3
- Circuit
- SPST-NO
- Outline
- 6.20mm x 6.20mm
- Features
- Sealed - Fully
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- 0.25mm
- Mechanical Life
- 100,000 Cycles
- Operating Force
- 157gf
Actuator MaterialPolyamide (PA), Nylon, Glass Filled Termination StyleGull Wing Base Product NumberCB315FP Actuator OrientationTop Actuated Operating Temperature-25°C ~ 70°C Contact Rating @ Voltage0.05A @ 24VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical3.10mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥19.19000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥16.14300 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥14.97520 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥13.33950 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥12.37588 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥11.71792 |
| Tape & Reel (TR) | 1,000 | ¥9.45491 |
| Tape & Reel (TR) | 2,000 | ¥9.00288 |
| Tape & Reel (TR) | 3,000 | ¥8.89024 |
