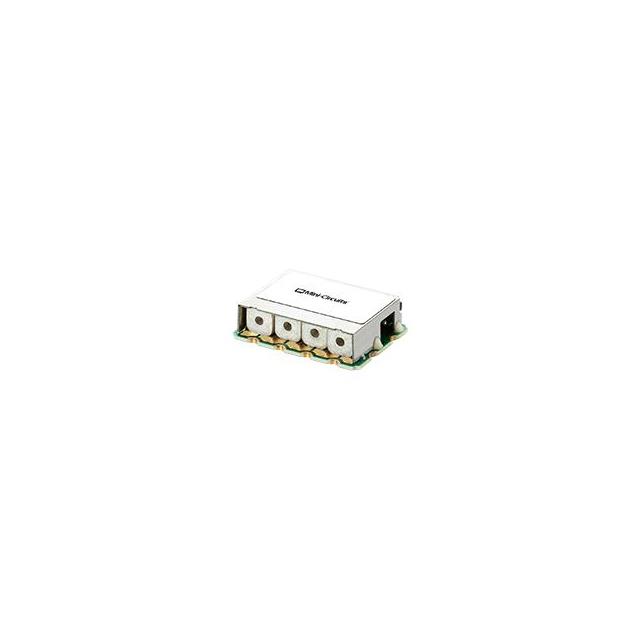

CBP4-3180AG+
RF FILTER BANDPASS 3.18GHZ 11SMD
Manufacturer: Mini-CircuitsIC code: 3157-CBP4-3180AG+-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
3.18GHz Center Frequency Band Pass RF Filter (Radio Frequency) 108MHz Bandwidth 2.2dB 11-SMD Module
Specifications
- Ripple
- -
- Series
- CBP4
- Bandwidth
- 108MHz
- Frequency
- 3.18GHz Center
- Packaging
- Strip
- Filter Type
- Band Pass
- Part Status
- Active
- Height (Max)
- 0.225" (5.71mm)
- Manufacturer
- Mini-Circuits
- Mounting Type
- Surface Mount
- Insertion Loss
- 2.2dB
- Package / Case
- 11-SMD Module
- Size / Dimension
- 0.748" L x 0.591" W (19.00mm x 15.00mm)
