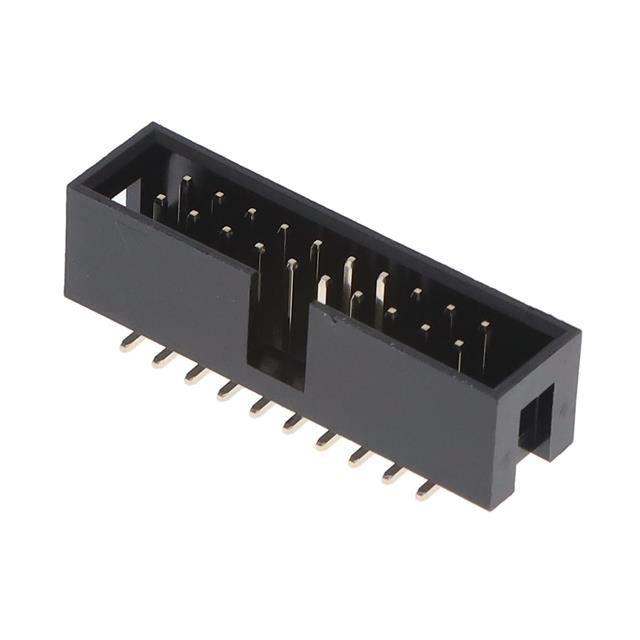

CH87202M1P0-R0
CH87 SERIES 2.54MM(.100) DUAL RO
Manufacturer: Cvilux USAIC code: 2987-CH87202M1P0-R0TR-ND - Tape & Reel (TR) || 2987-CH87202M1P0-R0CT-ND - Cut Tape (CT) || 2987-CH87202M1P0-R0DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 20 position 0.100" (2.54mm)
Specifications
- Mfr
- Cvilux USA
- Style
- Board to Board or Cable
- Series
- CH87
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Header
Pitch - Mating0.100" (2.54mm) Insulation Height0.362" (9.20mm) Insulation MaterialPolyamide (PA6T), Nylon 6T Row Spacing - Mating0.100" (2.54mm) Contact Finish - PostGold Operating Temperature-40°C ~ 105°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - PostFlash Contact Finish Thickness - MatingFlash Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) | 1 | ¥9.68000 |
| Cut Tape (CT) | 10 | ¥7.90600 |
| Cut Tape (CT) | 100 | ¥6.44230 |
| Tape & Reel (TR) | 2,000 | ¥4.93967 |
