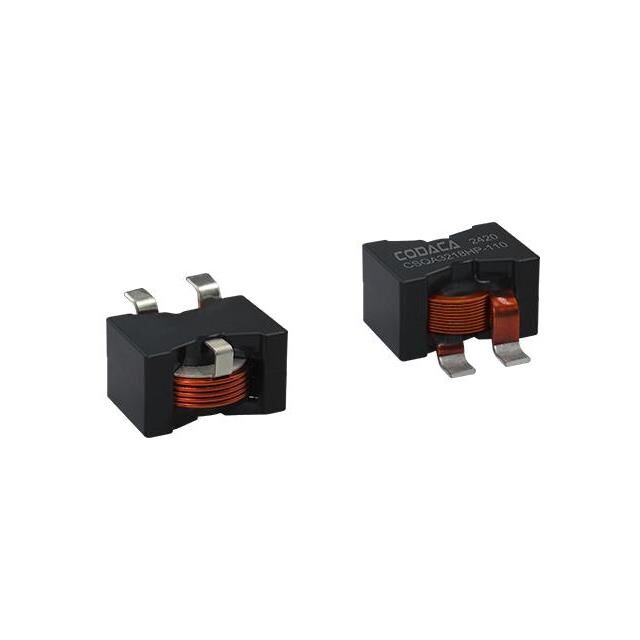

CSQA3218HP-1R5MC
SMD HIGH CURRENT POWER INDUCTOR
Manufacturer: CODACAIC code: 4044-CSQA3218HP-1R5MCCT-ND - Cut Tape (CT) || 4044-CSQA3218HP-1R5MCDKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
1.5 µH Shielded Wirewound Inductor 75 A 0.6mOhm Max 3-SMD High Saturation Current, Soft Saturation
Specifications
- Mfr
- CODACA
- Type
- Wirewound
- Series
- CSQA3218HP
- Features
- High Saturation Current, Soft Saturation
- Packaging
- Cut Tape (CT) || Digi-Reel®
- Shielding
- Shielded
- Tolerance
- ±20%
- Inductance
- 1.5 µH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- 3-SMD
- Material - Core
- Composite
- Size / Dimension
- 1.248" L x 1.345" W (32.00mm x 34.50mm)
- DC Resistance (DCR)
- 0.6mOhm Max
- Current Rating (Amps)
- 75 A
- Height - Seated (Max)
- 0.740" (18.80mm)
- Operating Temperature
- -55°C ~ 155°C
- Supplier Device Package
