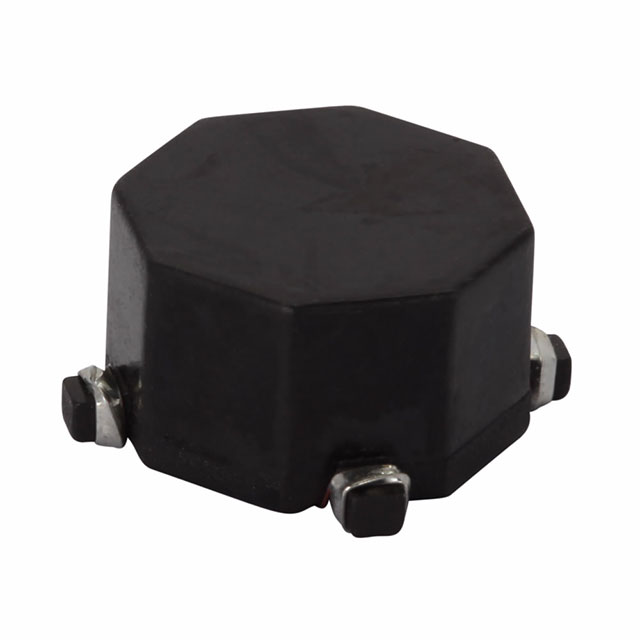

CTX150-2P-R
INDUCT ARRAY 2 COIL 148.1UH SMD
Manufacturer: Eaton - Electronics DivisionIC code: 283-CTX150-2P-RTR-ND - Tape & Reel (TR) || 283-CTX150-2P-RCT-ND - Cut Tape (CT) || 283-CTX150-2P-RDKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Unshielded 2 Coil Inductor Array 592.42 µH Inductance - Connected in Series 148.1 µH Inductance - Connected in Parallel 665mOhm Max DC Resistance (DCR) - Parallel 560 mA Nonstandard
Specifications
- Height
- 0.235" (5.97mm)
- Series
- Econo-Pac™
- Ratings
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Tolerance
- ±20%
- Part Status
- Active
- Manufacturer
- Eaton - Electronics Division
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Number of Coils
- 2
- Size / Dimension
- 0.450" L x 0.450" W (11.43mm x 11.43mm)
