CTX200-4-R

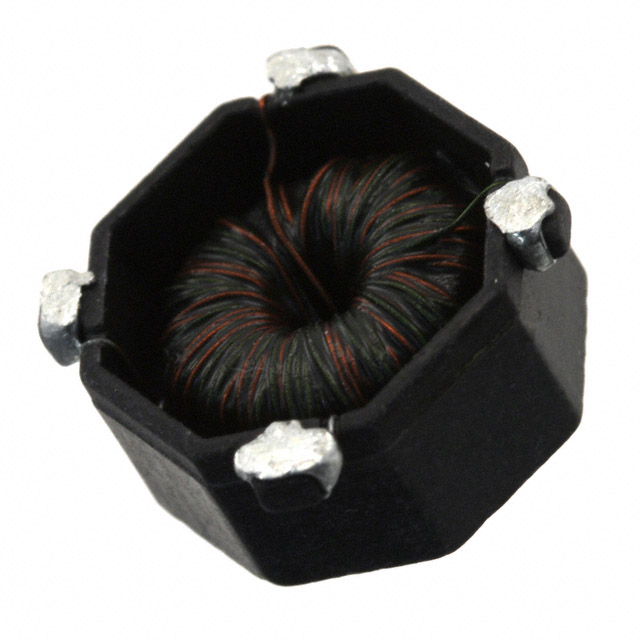

INDUCT ARRAY 2 COIL 200.7UH SMD
Manufacturer: Eaton - Electronics DivisionIC code: 513-1023-2-ND - Tape & Reel (TR) || 513-1023-1-ND - Cut Tape (CT) || 513-1023-6-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Unshielded 2 Coil Inductor Array 802.82 µH Inductance - Connected in Series 200.7 µH Inductance - Connected in Parallel 545mOhm Max DC Resistance (DCR) - Parallel 640 mA Nonstandard
Specifications
- Height
- 0.250" (6.35mm)
- Series
- OCTA-PAC®
- Ratings
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Tolerance
- ±20%
- Part Status
- Active
- Manufacturer
- Eaton - Electronics Division
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Number of Coils
- 2
- Size / Dimension
- 0.550" L x 0.550" W (13.97mm x 13.97mm)
