Description

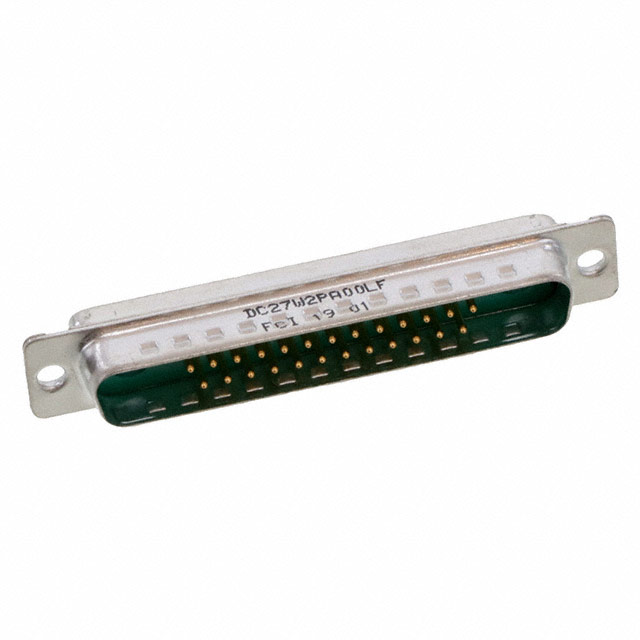

27 (25 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
Specifications
- Mfr
- Amphenol ICC (FCI)
- Color
- -
- Series
- DW
- Features
- Grounding Indents
- Packaging
- Tray
- Wire Gauge
- -
- Part Status
- Active
- Termination
- Solder Cup
- Contact Form
- -
- Contact Type
- Signal and Power (Not Included)
- Mounting Type
- Free Hanging (In-Line)
- Connector Type
- Plug, Male Pins
- Contact Finish
- Gold
Connector StyleD-Sub, Combo Base Product NumberDC27W2 Dielectric MaterialThermoplastic Number of Positions27 (25 + 2 Power) Current Rating (Amps)7.5A per Contact Operating Temperature-55°C ~ 125°C Shell Material, FinishSteel, Nickel Plated Contact Finish Thickness- Material Flammability RatingUL94 V-0 Shell Size, Connector Layout4 (DC, C) - 27W2 Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tray | 1 | ¥113.13000 |
| Tray | 10 | ¥96.13900 |
| Tray | 25 | ¥90.11960 |
| Tray | 60 | ¥84.72050 |
| Tray | 120 | ¥80.67858 |
| Tray | 300 | ¥75.63070 |
| Tray | 540 | ¥72.56181 |
| Tray | 1,020 | ¥69.38206 |
