Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

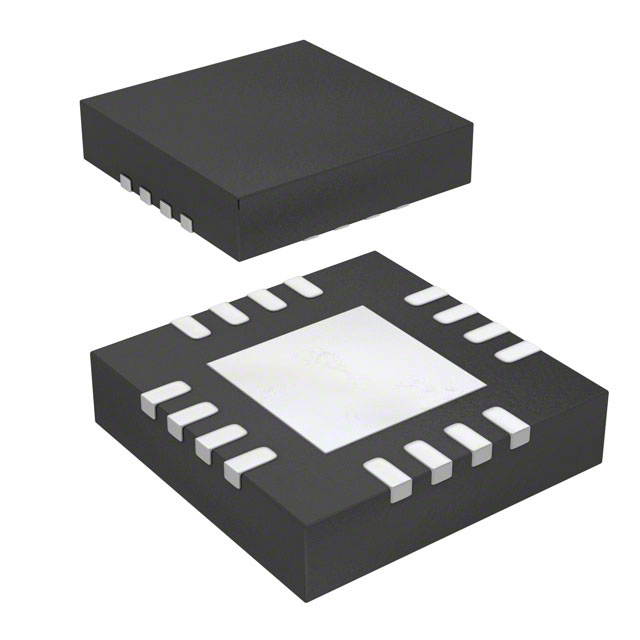

2 Circuit IC Switch 4:1 23Ohm 16-QFN (3x3)
Specifications
- Series
- -
- Crosstalk
- -109dB @ 100kHz
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- Vishay Siliconix
- Mounting Type
- Surface Mount
- -3db Bandwidth
- -
- Package / Case
- 16-VFQFN Exposed Pad
- Switch Circuit
- SP4T
- Charge Injection
- -10pC
- Number of Circuits
- 2
- Base Product Number
- DG409
- Operating Temperature
Supplier Device Package16-QFN (3x3) On-State Resistance (Max)23Ohm Voltage - Supply, Dual (V±)±3.3V ~ 8V Switch Time (Ton, Toff) (Max)72ns, 47ns Voltage - Supply, Single (V+)3V ~ 16V Current - Leakage (IS(off)) (Max)1nA Multiplexer/Demultiplexer Circuit4:1 Channel-to-Channel Matching (ΔRon)1Ohm Channel Capacitance (CS(off), CD(off))5.5pF, 13.5pF Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥14.47000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥10.62700 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥9.66600 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥8.60660 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥8.10128 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥7.79694 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥7.54637 |
| Tape & Reel (TR) | 2,500 | ¥7.28176 |
| Tape & Reel (TR) | 5,000 | ¥7.12231 |
| Tape & Reel (TR) | 7,500 | ¥7.04250 |
