Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

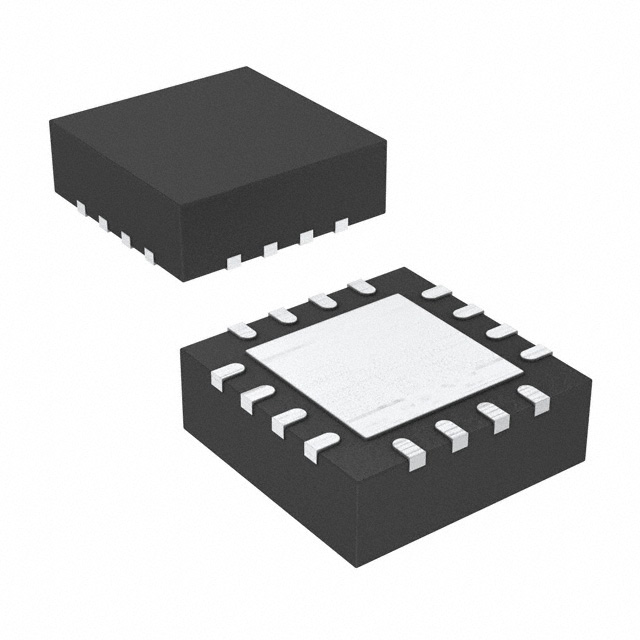

4 Circuit IC Switch 1:1 80Ohm 16-QFN (4x4)
Specifications
- Series
- -
- Crosstalk
- -95dB @ 100kHz
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- Vishay Siliconix
- Mounting Type
- Surface Mount
- -3db Bandwidth
- -
- Package / Case
- 16-VQFN Exposed Pad
- Switch Circuit
- SPST - NC
- Charge Injection
- -1pC
- Number of Circuits
- 4
- Base Product Number
- DG441
- Operating Temperature
Supplier Device Package16-QFN (4x4) On-State Resistance (Max)80Ohm Voltage - Supply, Dual (V±)±7V ~ 22V Switch Time (Ton, Toff) (Max)220ns, 120ns Voltage - Supply, Single (V+)13V ~ 36V Current - Leakage (IS(off)) (Max)500pA Multiplexer/Demultiplexer Circuit1:1 Channel-to-Channel Matching (ΔRon)2Ohm Channel Capacitance (CS(off), CD(off))4pF, 4pF Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥31.14000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥23.46800 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥21.54680 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥19.43790 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥18.43120 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥17.82442 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥17.32502 |
| Tape & Reel (TR) | 2,500 | ¥16.79800 |
| Tape & Reel (TR) | 5,000 | ¥16.48033 |
