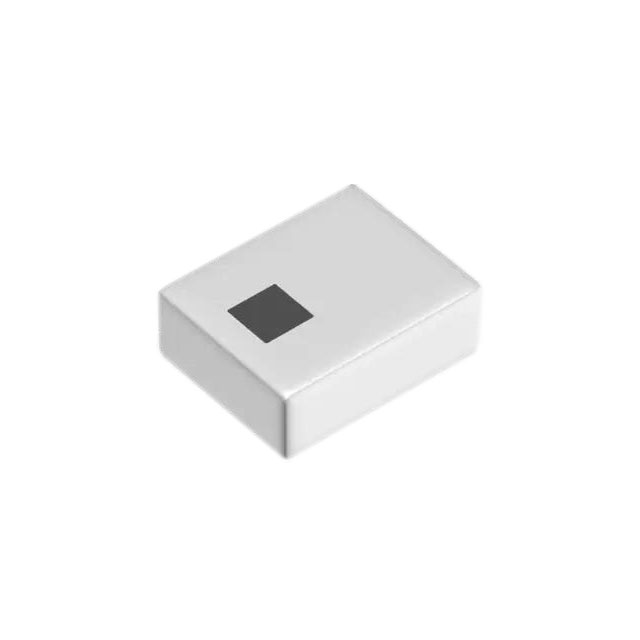

DPX255925DT-5045F3
MULTILAYER DIPLEXER FOR LTE
Manufacturer: TDK CorporationIC code: 445-DPX255925DT-5045F3TR-ND - Tape & Reel (TR) || 445-DPX255925DT-5045F3CT-ND - Cut Tape (CT) || 445-DPX255925DT-5045F3DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Diplexer 617MHz ~ 2.69GHz / 3.3GHz ~ 5.925GHz 1008 (2520 Metric), 9 PC Pad
Specifications
- Type
- Diplexer
- Series
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- TDK Corporation
- Mounting Type
- Surface Mount
- Package / Case
- 1008 (2520 Metric), 9 PC Pad
- Frequency Bands (Low / High)
- 617MHz ~ 2.69GHz / 3.3GHz ~ 5.925GHz
- Return Loss (Low Band / High Band)
- -
- Low Band Attenuation (min / max dB)
- 28.00dB / 32.00dB
- High Band Attenuation (min / max dB)
- 30.00dB / 33.00dB
