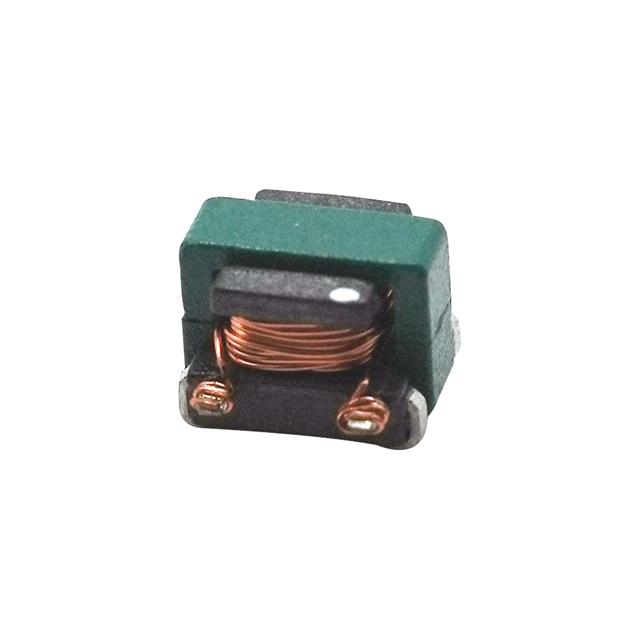

ECSTA1V0504-1150-R
CURR SENSE XFMR 150:1 7A SMD
Manufacturer: Eaton - Electronics DivisionIC code: 283-ECSTA1V0504-1150-RTR-ND - Tape & Reel (TR) || 283-ECSTA1V0504-1150-RCT-ND - Cut Tape (CT) || 283-ECSTA1V0504-1150-RDKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
7 A 150:1 Current Sense Transformer 50kHz ~ 1MHz 3Ohm Primary, 21Ohm Secondary Max 1.8 mH Surface Mount
Specifications
- Type
- Invasive
- Series
- ECSTA
- Weight
- -
- Ratings
- AEC-Q200
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Inductance
- 1.8 mH
- Part Status
- Active
- Manufacturer
- Eaton - Electronics Division
- Current Ratio
- -
- Mounting Type
- Surface Mount
- ET (Volt-Time)
- -
- Frequency Range
- 50kHz ~ 1MHz
- Size / Dimension
