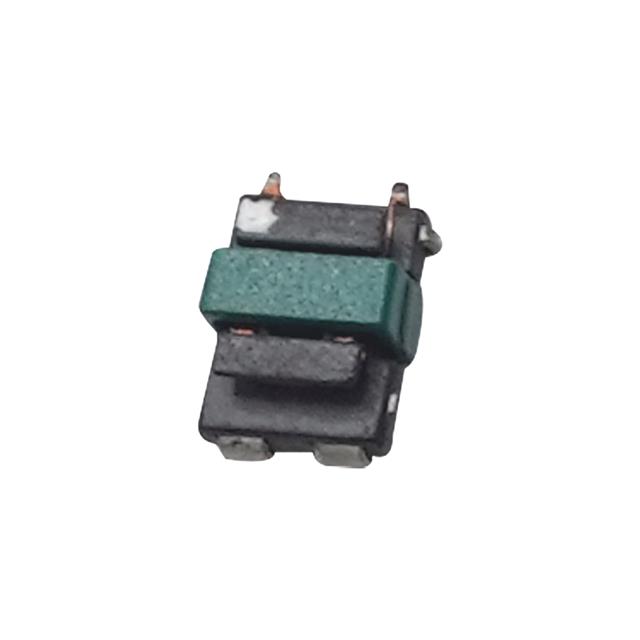

ECSTA1V0703-1020-R
CURR SENSE XFMR 20:1 9A SMD
Manufacturer: Eaton - Electronics DivisionIC code: 283-ECSTA1V0703-1020-RTR-ND - Tape & Reel (TR) || 283-ECSTA1V0703-1020-RCT-ND - Cut Tape (CT) || 283-ECSTA1V0703-1020-RDKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
9 A 20:1 Current Sense Transformer 50kHz ~ 1MHz 1.5mOhm Primary, 420mOhm Secondary Max 53 µH Surface Mount
Specifications
- Type
- Invasive
- Series
- ECSTA
- Weight
- -
- Ratings
- AEC-Q200
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Inductance
- 53 µH
- Part Status
- Active
- Manufacturer
- Eaton - Electronics Division
- Current Ratio
- -
- Mounting Type
- Surface Mount
- ET (Volt-Time)
- -
- Frequency Range
- 50kHz ~ 1MHz
- Size / Dimension
