ECSTA1V1308-1060-R

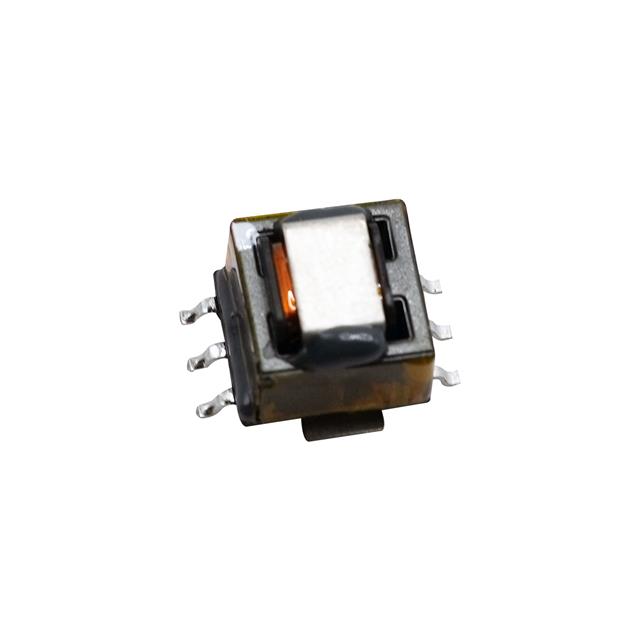

CURR SENSE XFMR 60:1 15A SMD
Manufacturer: Eaton - Electronics DivisionIC code: 283-ECSTA1V1308-1060-RTR-ND - Tape & Reel (TR) || 283-ECSTA1V1308-1060-RCT-ND - Cut Tape (CT) || 283-ECSTA1V1308-1060-RDKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
15 A 60:1 Current Sense Transformer 50kHz ~ 1MHz 3.9mOhm Primary, 810mOhm Secondary Max 2 mH Surface Mount
Specifications
- Type
- Invasive
- Series
- ECSTA
- Weight
- -
- Ratings
- AEC-Q200
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Inductance
- 2 mH
- Part Status
- Active
- Manufacturer
- Eaton - Electronics Division
- Current Ratio
- -
- Mounting Type
- Surface Mount
- ET (Volt-Time)
- -
- Frequency Range
- 50kHz ~ 1MHz
- Size / Dimension
