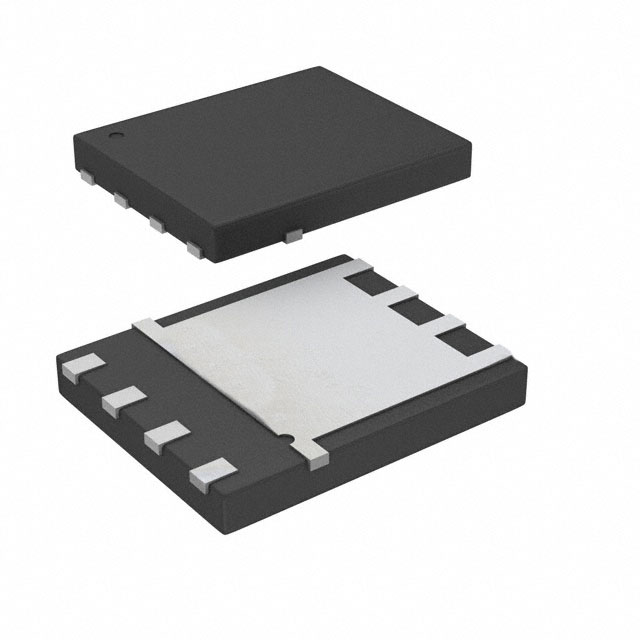

FDMS8350LET40
MOSFET N-CH 40V 49A/300A POWER56
Manufacturer: onsemiIC code: 488-FDMS8350LET40TR-ND - Tape & Reel (TR) || 488-FDMS8350LET40CT-ND - Cut Tape (CT) || 488-FDMS8350LET40DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
N-Channel 40 V 49A (Ta), 300A (Tc) 3.33W (Ta), 125W (Tc) Surface Mount 8-PQFN (5x6)
Specifications
- Mfr
- onsemi
- Grade
- -
- Series
- PowerTrench®
- FET Type
- N-Channel
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Obsolete
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 8-PowerTDFN
- Vgs(th) (Max) @ Id
- 3V @ 250µA
Base Product NumberFDMS8350 Operating Temperature-55°C ~ 175°C (TJ) Rds On (Max) @ Id, Vgs0.85mOhm @ 47A, 10V Power Dissipation (Max)3.33W (Ta), 125W (Tc) Supplier Device Package8-PQFN (5x6) Gate Charge (Qg) (Max) @ Vgs219 nC @ 10 V Drain to Source Voltage (Vdss)40 V Input Capacitance (Ciss) (Max) @ Vds16590 pF @ 20 V Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V Current - Continuous Drain (Id) @ 25°C49A (Ta), 300A (Tc) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) | 1 | ¥44.58000 |
| Cut Tape (CT) | 10 | ¥29.73900 |
| Cut Tape (CT) | 100 | ¥21.32500 |
| Cut Tape (CT) | 500 | ¥17.73962 |
| Cut Tape (CT) | 1,000 | ¥17.44042 |
| Digi-Reel® | 1 | ¥45.98000 |
| Digi-Reel® | 10 | ¥30.65700 |
| Digi-Reel® | 100 | ¥21.98490 |
| Digi-Reel® | 500 | ¥18.28842 |
| Digi-Reel® | 1,000 | ¥17.44042 |
