Description

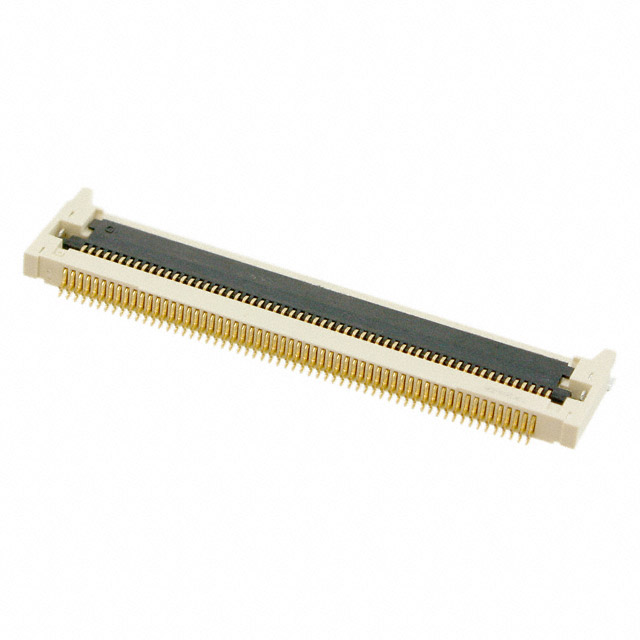

60 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Specifications
- Pitch
- 0.020" (0.50mm)
- Series
- FF03
- Features
- Zero Insertion Force (ZIF)
- Packaging
- Strip
- Part Status
- Active
- Termination
- Solder
- Manufacturer
- JAE Electronics
- Housing Color
- White
- Mating Cycles
- 20
- Mounting Type
- Surface Mount, Right Angle
- Actuator Color
- Black
- Cable End Type
- Straight
- Contact Finish
- Gold
Locking FeatureRotary Lock Contact MaterialCopper Alloy Housing MaterialLiquid Crystal Polymer (LCP) Actuator MaterialPolyamide (PA), Nylon, Glass Filled Height Above Board0.079" (2.00mm) Base Product NumberFF0360SA Current Rating (Amps)0.5A per Contact Operating Temperature-40°C ~ 85°C Connector/Contact TypeContacts, Bottom Contact Finish Thickness- Material Flammability Rating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Strip | 1 | ¥70.63000 |
| Strip | 10 | ¥60.04800 |
| Strip | 25 | ¥56.28560 |
| Strip | 50 | ¥53.59620 |
| Strip | 100 | ¥51.03820 |
| Strip | 250 | ¥47.84388 |
| Strip | 500 | ¥45.56186 |
| Strip | 1,000 | ¥43.38958 |
