FGD2736G3-F085V

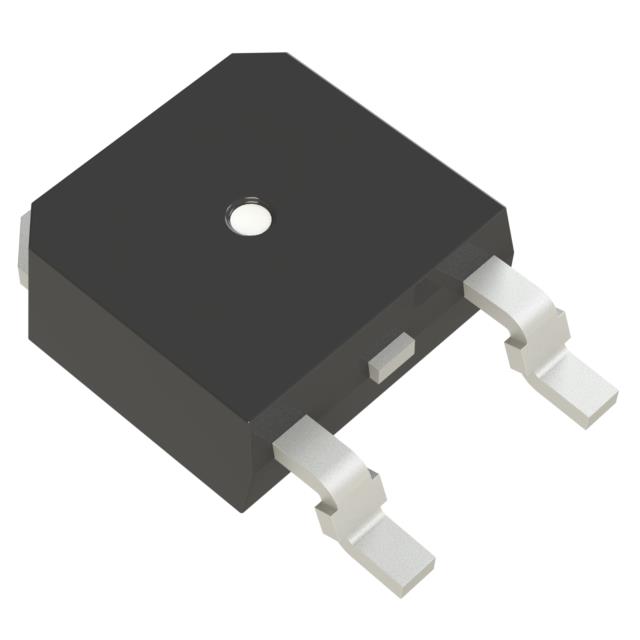

IGBT 360V 37.5A DPAK
Manufacturer: onsemiIC code: 488-FGD2736G3-F085VTR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
IGBT 360 V 37.5 A 150 W Surface Mount DPAK
Specifications
- Grade
- Automotive
- Series
- EcoSPARK®
- IGBT Type
- -
- Packaging
- Tape & Reel (TR)
- Input Type
- Standard
- Gate Charge
- 18 nC
- Part Status
- Obsolete
- Power - Max
- 150 W
- Manufacturer
- onsemi
- Mounting Type
- Surface Mount
- Qualification
- AEC-Q101
- Package / Case
- TO-252-3, DPAK (2 Leads + Tab), SC-63
- Test Condition
- 300V, 6.5A, 470Ohm, 5V
- Switching Energy
- -
- Base Product Number
- FGD2736
- Td (on/off) @ 25°C
- 900ns/4.4µs
- Operating Temperature
- -40°C ~ 175°C (TJ)
- Supplier Device Package
- DPAK
