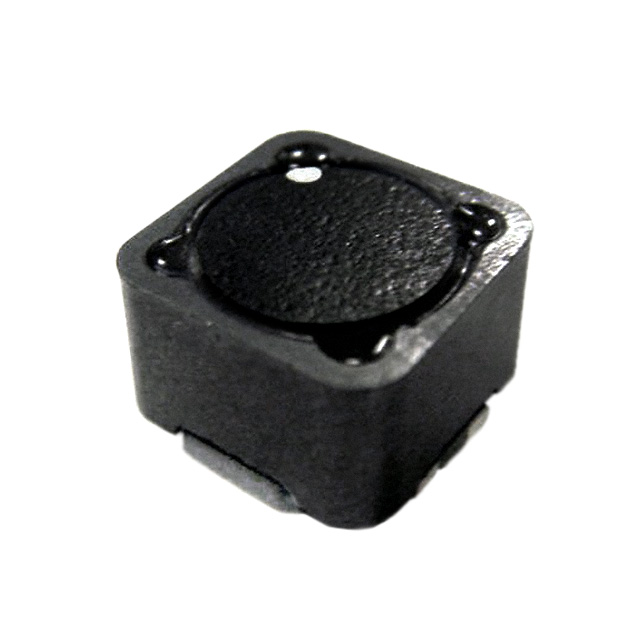

HM78D-1210100MLFTR
INDUCT ARRAY 2 COIL 10UH SMD
Manufacturer: TT Electronics/BI MagneticsIC code: 987-1451-2-ND - Tape & Reel (TR) || 987-1451-1-ND - Cut Tape (CT) || 987-1451-6-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Shielded 2 Coil Inductor Array 41.12 µH Inductance - Connected in Series 10 µH Inductance - Connected in Parallel 20mOhm Max DC Resistance (DCR) - Parallel 3.2 A Nonstandard
Specifications
- Height
- 0.413" (10.50mm)
- Series
- HM78D
- Ratings
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Shielded
- Tolerance
- ±20%
- Part Status
- Discontinued at Digi-Key
- Manufacturer
- TT Electronics/BI Magnetics
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Number of Coils
- 2
- Size / Dimension
- 0.492" L x 0.492" W (12.50mm x 12.50mm)
