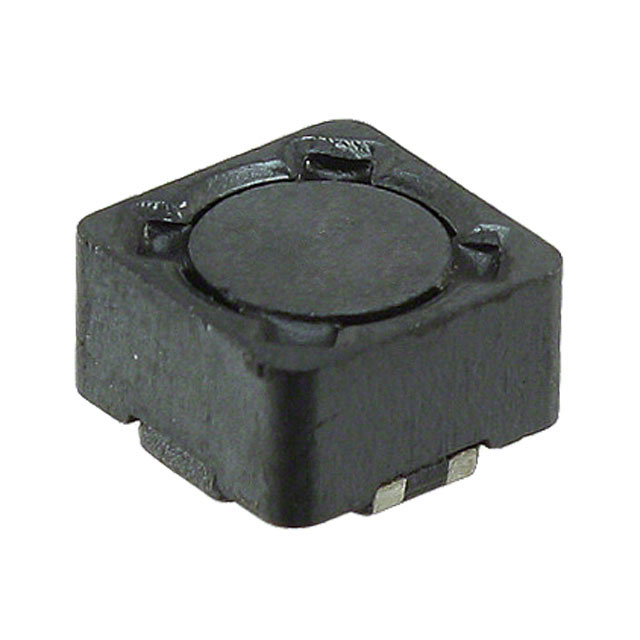

HM78D-7556R8MLFTR
INDUCT ARRAY 2 COIL 6.8UH SMD
Manufacturer: TT Electronics/BI MagneticsIC code: 987-1439-1-ND - Cut Tape (CT)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Shielded 2 Coil Inductor Array 29.38 µH Inductance - Connected in Series 6.8 µH Inductance - Connected in Parallel 41.8mOhm DC Resistance (DCR) - Parallel 2.6 A Nonstandard
Specifications
- Height
- 0.189" (4.80mm)
- Series
- HM78D
- Ratings
- -
- Packaging
- Cut Tape (CT)
- Shielding
- Shielded
- Tolerance
- ±20%
- Part Status
- Discontinued at Digi-Key
- Manufacturer
- TT Electronics/BI Magnetics
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Number of Coils
- 2
- Size / Dimension
- 0.303" L x 0.303" W (7.70mm x 7.70mm)
