HMC525A-SX

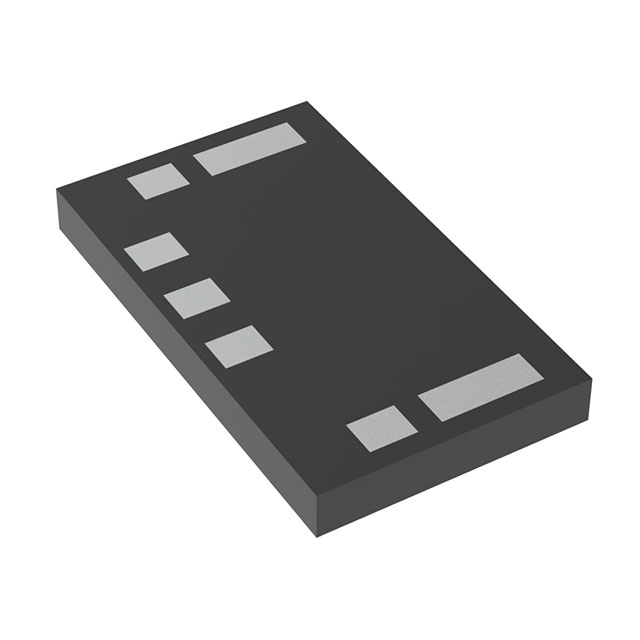

12-PAD BARE DIE [CHIP] SAMPLE PA
Manufacturer: Analog Devices Inc.IC code: 505-HMC525A-SX-ND
![12-PAD BARE DIE [CHIP] SAMPLE PA](/uploads/ic-online/downloads/rf-and-wireless/rf-mixers/hmc553ag-sx.jpg?w=480&q=80&dpl=dpl_yk6fQzf3GSGknraXGUcBwaVEends)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Mixer IC General Purpose Up/Down Converter 4GHz ~ 8.5GHz Die
Specifications
- Gain
- -
- Series
- -
- RF Type
- General Purpose
- Frequency
- 4GHz ~ 8.5GHz
- Packaging
- Tray
- Part Status
- Active
- Manufacturer
- Analog Devices Inc.
- Noise Figure
- 10.5dB
- Mounting Type
- Surface Mount
- Package / Case
- Die
- Current - Supply
- -
- Number of Mixers
- 2
- Voltage - Supply
- -
