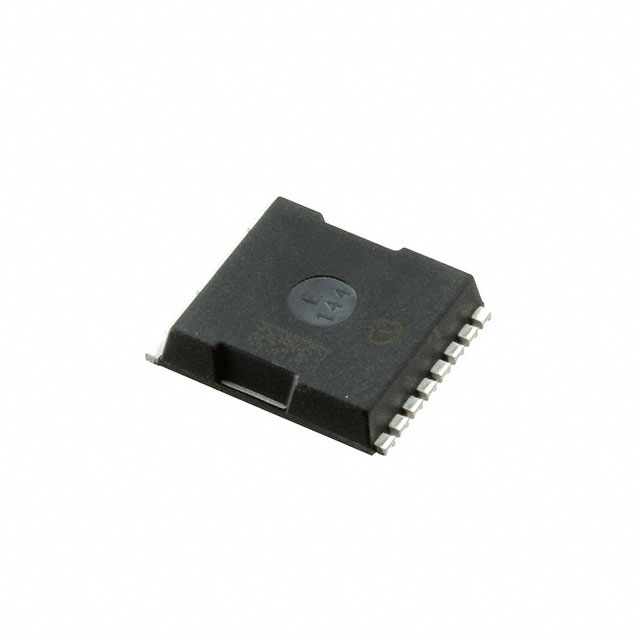

IAUT300N08S5N014ATMA1
MOSFET N-CH 80V 300A 8HSOF
Manufacturer: Infineon TechnologiesIC code: IAUT300N08S5N014ATMA1TR-ND - Tape & Reel (TR) || IAUT300N08S5N014ATMA1CT-ND - Cut Tape (CT) || IAUT300N08S5N014ATMA1DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
N-Channel 80 V 300A (DC) 300W (Tc) Surface Mount PG-HSOF-8-1
Specifications
- Mfr
- Infineon Technologies
- Grade
- Automotive
- Series
- OptiMOS™ 5
- FET Type
- N-Channel
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Active
- Mounting Type
- Surface Mount
- Qualification
- AEC-Q101
- Package / Case
- 8-PowerSFN
- Vgs(th) (Max) @ Id
- 3.8V @ 230µA
Base Product NumberIAUT300 Operating Temperature-55°C ~ 175°C (TJ) Rds On (Max) @ Id, Vgs1.4mOhm @ 100A, 10V Power Dissipation (Max)300W (Tc) Supplier Device PackagePG-HSOF-8-1 Gate Charge (Qg) (Max) @ Vgs187 nC @ 10 V Drain to Source Voltage (Vdss)80 V Input Capacitance (Ciss) (Max) @ Vds13178 pF @ 40 V Drive Voltage (Max Rds On, Min Rds On)6V, 10V Current - Continuous Drain (Id) @ 25°C300A (DC) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥41.93000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥27.67100 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥20.66670 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥19.85394 |
| Tape & Reel (TR) | 2,000 | ¥16.22055 |
