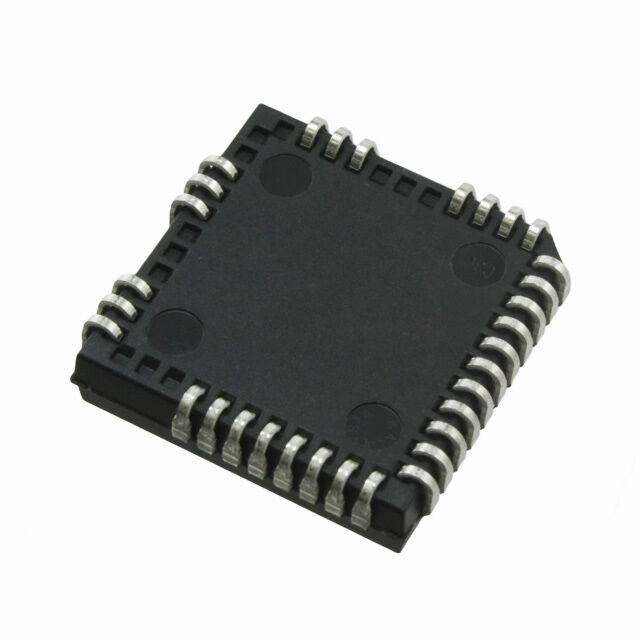

IR2131JTRPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
Manufacturer: Infineon TechnologiesIC code: 448-IR2131JTRPBFTR-ND - Tape & Reel (TR) || 448-IR2131JTRPBFCT-ND - Cut Tape (CT) || 448-IR2131JTRPBFDKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Half-Bridge Gate Driver IC Inverting 44-PLCC, 32 Leads (16.58x16.58)
Specifications
- Series
- -
- Gate Type
- IGBT, MOSFET (N-Channel)
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Input Type
- Inverting
- Part Status
- Obsolete
- Channel Type
- Independent
- Manufacturer
- Infineon Technologies
- Mounting Type
- Surface Mount
- Package / Case
- 44-LCC (J-Lead), 32 Leads
- Voltage - Supply
- 10V ~ 20V
- Number of Drivers
- 6
- Base Product Number
- IR2131
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40°C ~ 150°C (TJ)
- Rise / Fall Time (Typ)
- 80ns, 40ns
- Supplier Device Package
- 44-PLCC, 32 Leads (16.58x16.58)
- Logic Voltage - VIL, VIH
- 0.8V, 2.2V
- High Side Voltage - Max (Bootstrap)
- 600 V
- Current - Peak Output (Source, Sink)
- 250mA, 500mA
