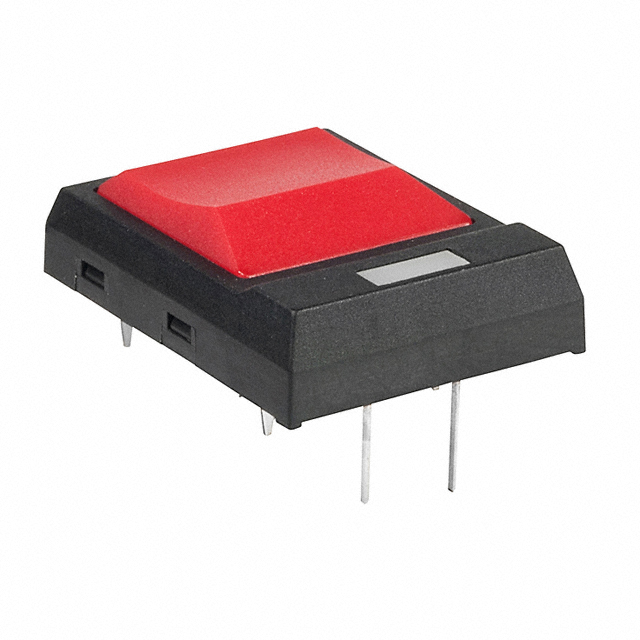

Tactile Switch SPST-NO Top Actuated Through Hole
Specifications
- Mfr
- NKK Switches
- Series
- JF
- Circuit
- SPST-NO
- Outline
- 22.80mm x 17.70mm
- Features
- Process Sealed
- Packaging
- Tray
- Part Status
- Active
- Illumination
- Illuminated
- Actuator Type
- Square Button
- Mounting Type
- Through Hole
- Switch Travel
- 0.80mm
- Mechanical Life
- 500,000 Cycles
- Operating Force
- 200gf
Actuator MaterialPolyamide (PA), Nylon Base Product NumberJF15RP3C Actuator OrientationTop Actuated Operating Temperature-25°C ~ 70°C Contact Rating @ Voltage0.05A @ 24VDC Illumination Type, ColorLED, Red Actuator Length, Right Angle- Illumination Voltage (Nominal)2 VDC Actuator Height off PCB, Vertical6.78mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tray | 1 | ¥64.26000 |
| Tray | 10 | ¥53.37500 |
| Tray | 25 | ¥49.44120 |
| Tray | 100 | ¥44.14850 |
| Tray | 250 | ¥41.14252 |
| Tray | 500 | ¥39.13542 |
| Tray | 1,000 | ¥37.35166 |
